Yamaha Outboard Parts - OPTIONAL PARTS 2 - VF90A (2023) | Flood Marine

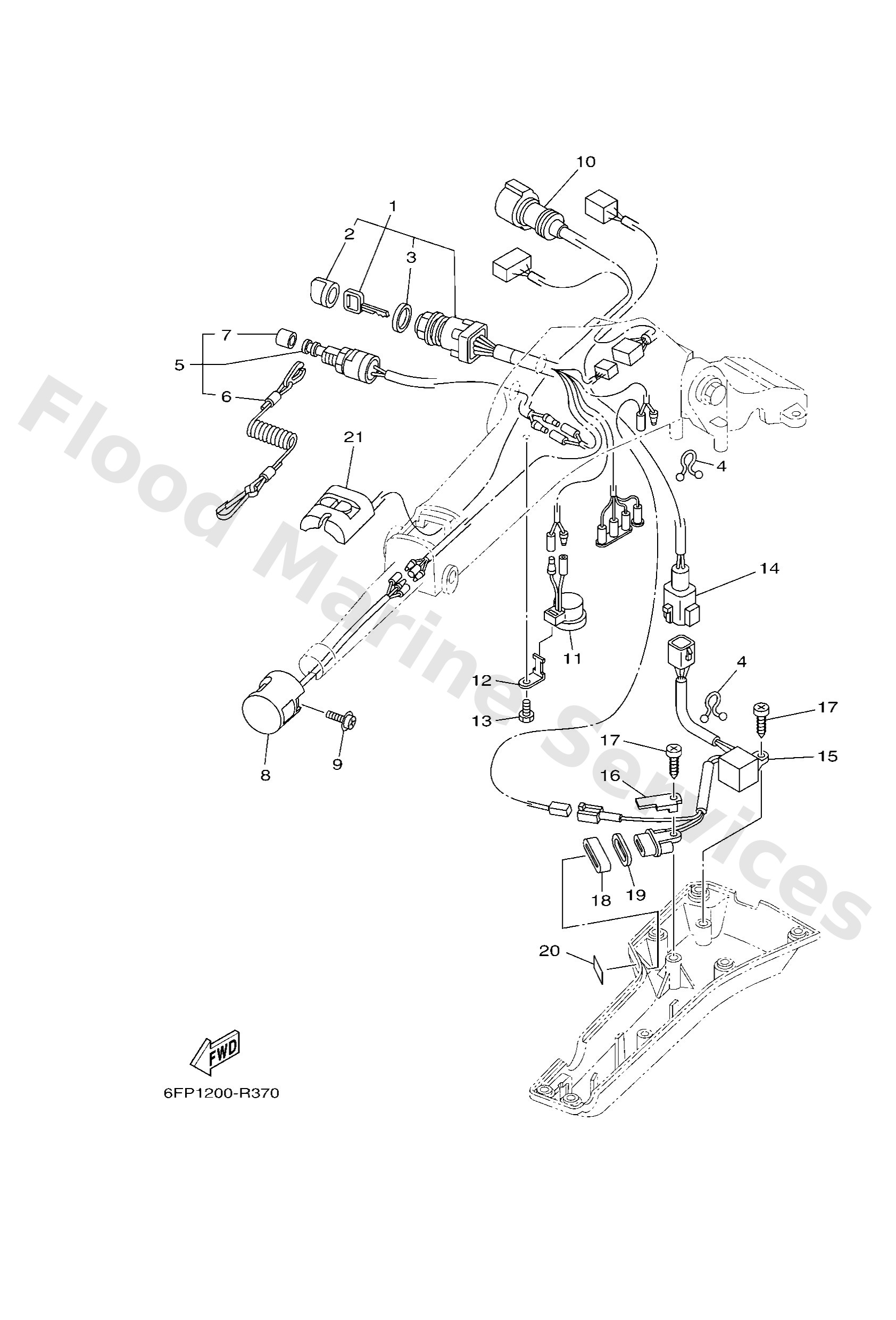

Diagram: OPTIONAL PARTS 2

Diagram

Parts List

Reference
Description
Price


1
6X48251042
Main switch assembly
Loading…

↗
2
6768257701
Cap, key
Loading…

↗
3
7038253200
Cap
Loading…

↗
4
9046408M07
Clamp
Loading…

↗
5
69W8257500
Engine stop switch assembly
Loading…

↗
6
6828255600
Lanyard, stop switch
Loading…

↗
7
6898257Y00
Cap
Loading…

↗
8
6X48256301
Trim & tilt switch assembly
Loading…

↗
9
9798006216
Screw, with washer(6h2)
Loading…

↗
10
6X48258611
Ext., wire harness (l:950mm)
Loading…

↗
11
6X48338300
Buzzer
Loading…

↗
12
6X48338600
Stay, buzzer
Loading…

↗
13
97D9506014
Bolt, hexagon deep recess
Loading…

↗
14
6X48365320
Wire, lead (l: 700mm)
Loading…

↗
15
6C58430100
Pilot light assembly 1
Loading…

↗
16
6X44411400
Stopper
Loading…

↗
17
9778060620
Screw, tapping(6k8)
Loading…

↗
18
6X44272701
Grommet
Loading…

↗
19
6FM8358900
Gasket
Loading…

↗
20
6X48541500
Mark, signal lamp
Loading…

↗
21
6X48186000
Switch assembly
Loading…

↗
