Yamaha Outboard Parts - OPTIONAL PARTS 3 - F130A (2024) | Flood Marine

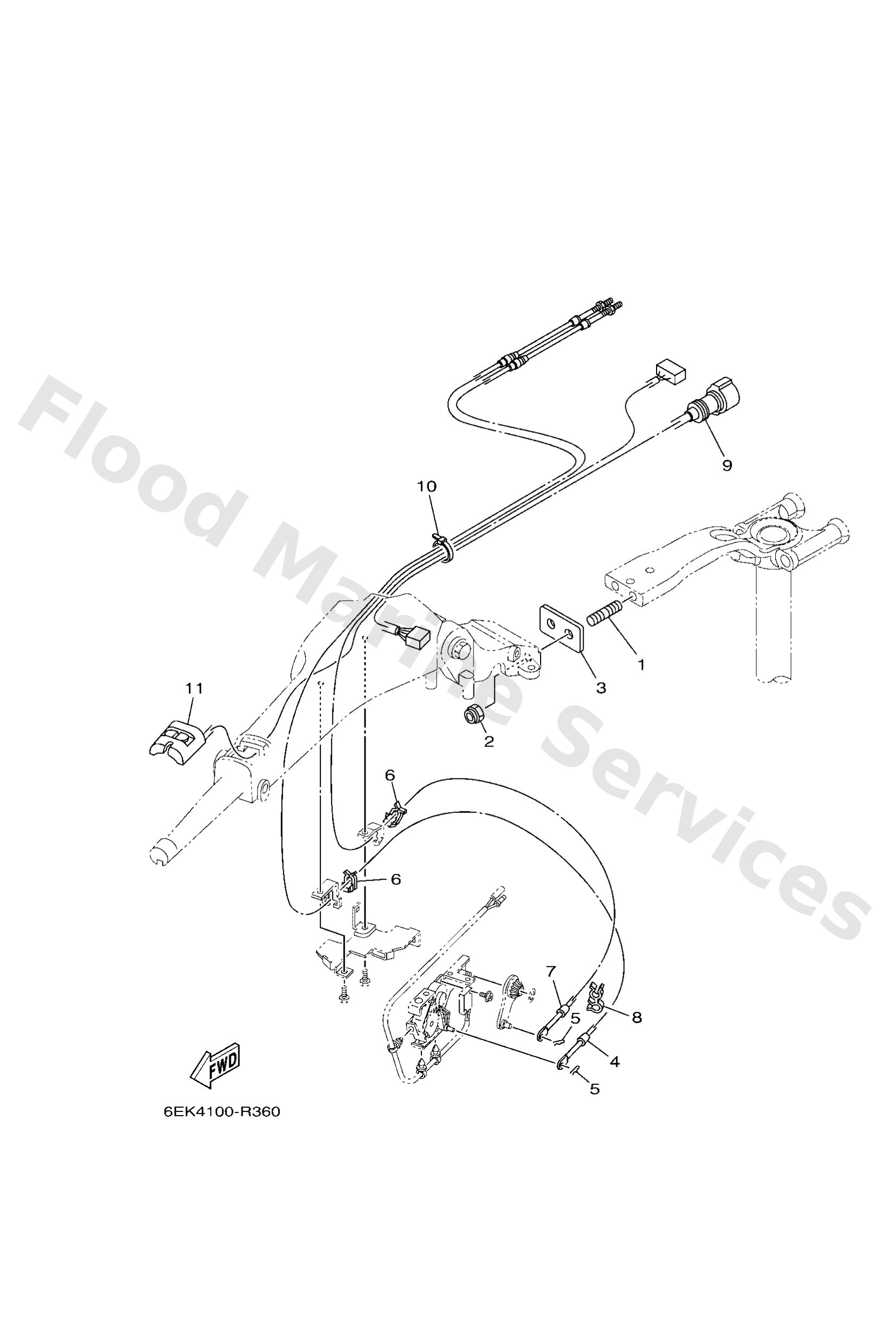

Diagram: OPTIONAL PARTS 3

Diagram

Parts List

Reference
Description
Price


1
9011610063
Bolt, stud
Loading…

↗
2
9018510027
Nut, self-locking
Loading…

↗
3
6EK4212100
Bracket
Loading…

↗
4
6EK4832100
Cable
Loading…

↗
5
9046810005
Pin, hair 6264123500
Loading…

↗
6
63D4853800
Clamp, cable 1
Loading…

↗
7
6EK2630100
Throttle cable assembly
Loading…

↗
8
9046409M42
Clamp(6b0)
Loading…

↗
9
6X48258611
Ext., wire harness (l:950mm)
Loading…

↗
10
9046513M24
Band, switch cord
Loading…

↗
11
6X48186000
Switch assembly
Loading…

↗
