F200CET (2015)
OPTIONAL PARTS 3

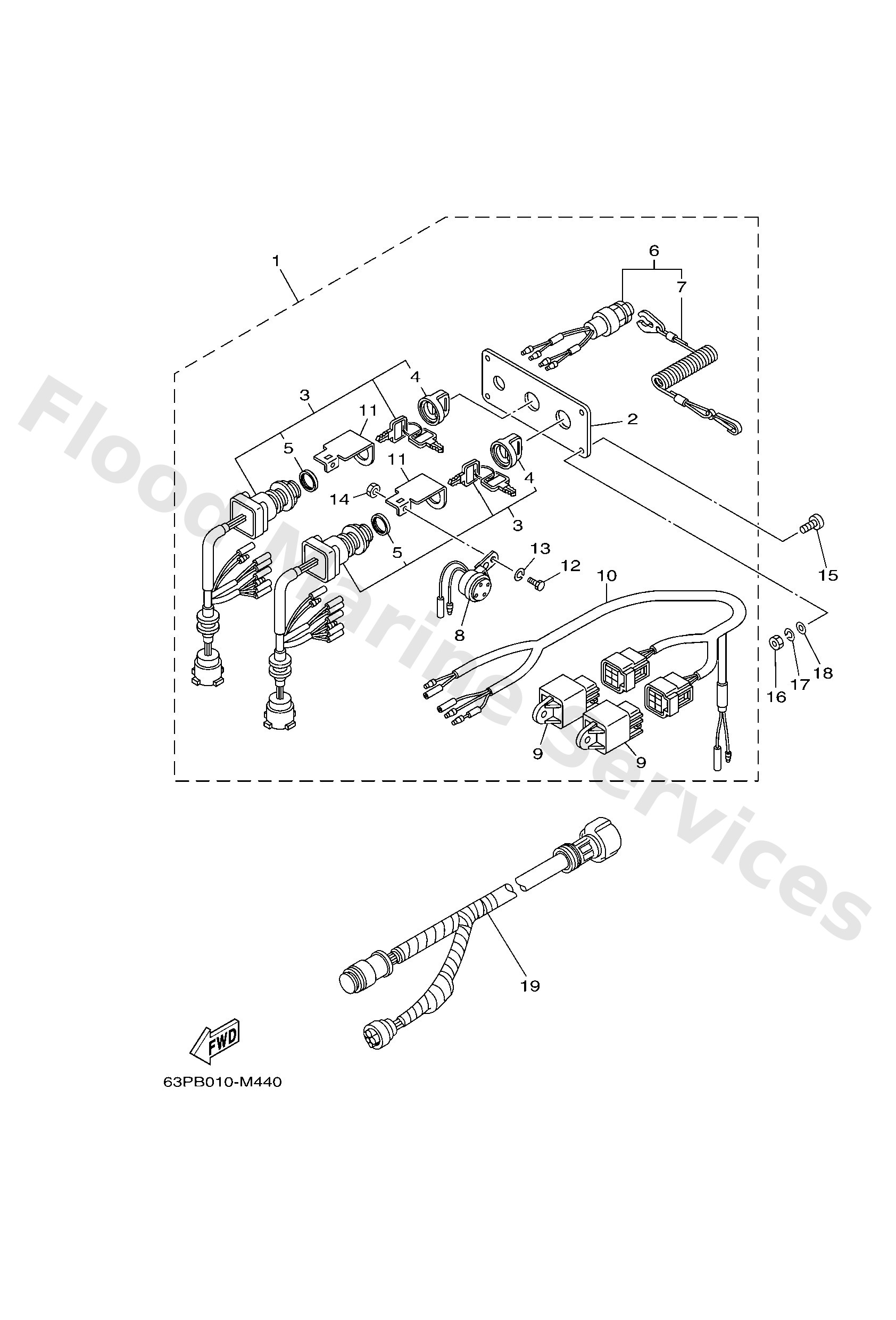

Diagram: OPTIONAL PARTS 3
Parts List
Reference
Description
Price
1
6Y88257004
FOR RUS
Panel switch assembly
Loading…
↗
2
6Y88257101
Plate, panel switch
Loading…
↗
3
6Y88251003
Main switch assembly
Loading…
↗
4
6768257701
Cap, key
Loading…
↗
5
7038253200
Cap
Loading…
↗
6
6K18257501
Engine stop switch assembly
Loading…
↗
7
6828255600
Lanyard, stop switch
Loading…
↗
8
6R58338300
Buzzer
Loading…
↗
9
68V8195000
Relay assembly
Loading…
↗
10
6Y88250700
Lead, ignition switch relay
Loading…
↗
11
64D8258100
Stay, cord clamp
Loading…
↗
12
9700305012
Bolt
Loading…
↗
13
9290305100
Ybs67-5 washer, spring
Loading…
↗
14
9530305700
Nut (656)
Loading…
↗
15
9014905M05
FOR RUS
Screw(6k0)
Loading…
↗
16
9538005600
FOR RUS
Nut, hexagon (663)
Loading…
↗
17
9299005100
FOR RUS
Ybs67-5 washer, spring
Loading…
↗
18
9299005600
FOR RUS
Washer, plain (646)
Loading…
↗
19
61B8258A01
FOR RUS (10P)
Extension, wire harness
Loading…
↗
