Yamaha Outboard Parts - OPTIONAL PARTS 3 - F300DET (2024) | Flood Marine

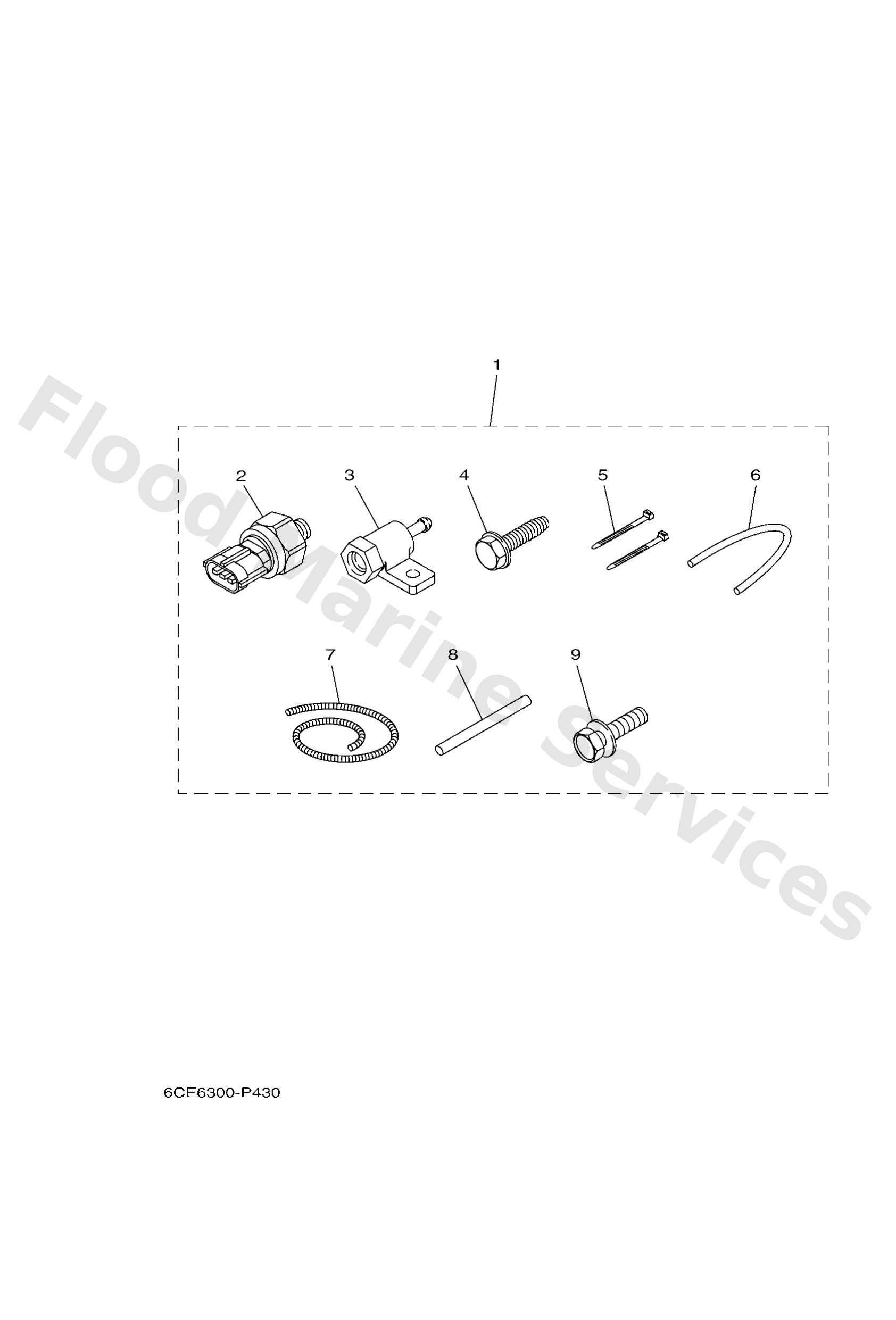

Diagram: OPTIONAL PARTS 3

Diagram

Parts List

Reference
Description
Price


1
60V8A4L11C
Sensor, module 1
Loading…

↗
2
6AW8366B10
Sensor, water pressure
Loading…

↗
3
60V8366D00
Adaptor, input
Loading…

↗
4
9010906M81
Bolt
Loading…

↗
5
9046511M10
Clamp
Loading…

↗
6
9044507017
Hose (l550)
Loading…

↗
7
9044707013
Hose, cover (l: 700mm)
Loading…

↗
8
60V4262901
Seal
Loading…

↗
9
97E9506516
Bolt, hexagon w/w deep recess
Loading…

↗
