LF115B (2021)
OPTIONAL PARTS 3

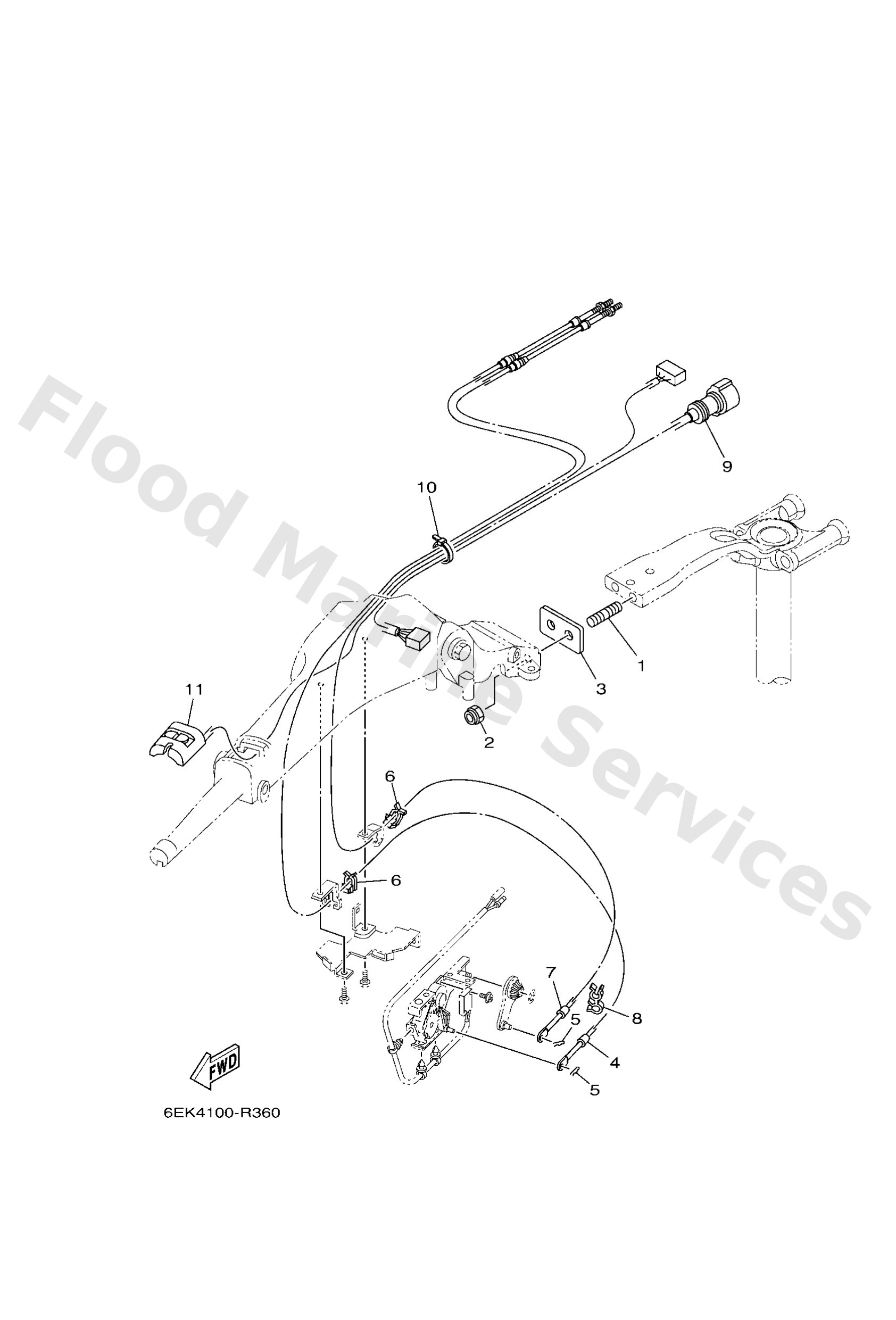

Diagram: OPTIONAL PARTS 3
Parts List
Reference
Description
Price
1
9011610063
Bolt, stud
Loading…
↗
2
9018510027
Nut, self-locking
Loading…
↗
3
6EK4212100
Bracket
Loading…
↗
4
6EK4832100
Cable
Loading…
↗
5
9046810005
Pin, hair 6264123500
Loading…
↗
6
63D4853800
Clamp, cable 1
Loading…
↗
7
6EK2630100
Throttle cable assembly
Loading…
↗
8
9046409M42
Clamp(6b0)
Loading…
↗
9
6X48258610
Ext., wire harness (l:950mm)
Loading…
↗
10
9046513M24
Band, switch cord
Loading…
↗
11
6X48186000
Switch assembly
Loading…
↗
