F20GMH (2023)
OPTIONAL PARTS 4

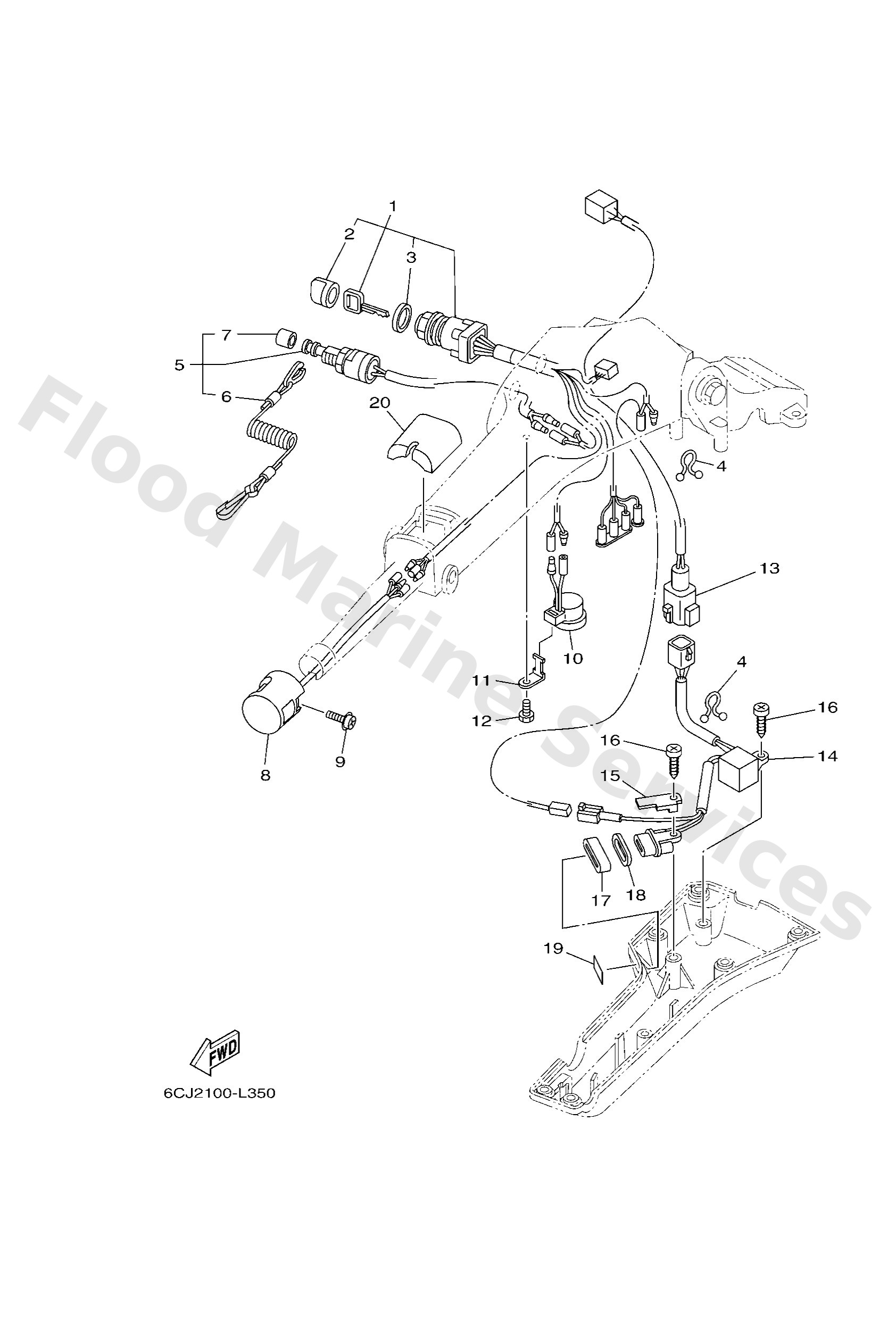

Diagram: OPTIONAL PARTS 4
Parts List
Reference
Description
Price
1
6X48251042
Main switch assembly
Loading…
↗
2
6768257701
Cap, key
Loading…
↗
3
7038253200
Cap
Loading…
↗
4
9046408M07
Clamp
Loading…
↗
5
69W8257500
Engine stop switch assembly
Loading…
↗
6
6828255600
Lanyard, stop switch
Loading…
↗
7
6898257Y00
Cap
Loading…
↗
8
6X48256301
Trim & tilt switch assembly
Loading…
↗
9
9798006216
Screw, with washer(6h2)
Loading…
↗
10
6X48338300
Buzzer
Loading…
↗
11
6X48338600
Stay, buzzer
Loading…
↗
12
97D9506014
Bolt, hexagon deep recess
Loading…
↗
13
6X48365320
Wire, lead (l: 700mm)
Loading…
↗
14
6C58430100
Pilot light assembly 1
Loading…
↗
15
6X44411400
Stopper
Loading…
↗
16
9778060620
Screw, tapping(6k8)
Loading…
↗
17
6X44272701
Grommet
Loading…
↗
18
6FM8358900
Gasket
Loading…
↗
19
6X48541500
Mark, signal lamp
Loading…
↗
20
6X48194201
Cover
Loading…
↗
