VF115A (2024)
OPTIONAL PARTS 4

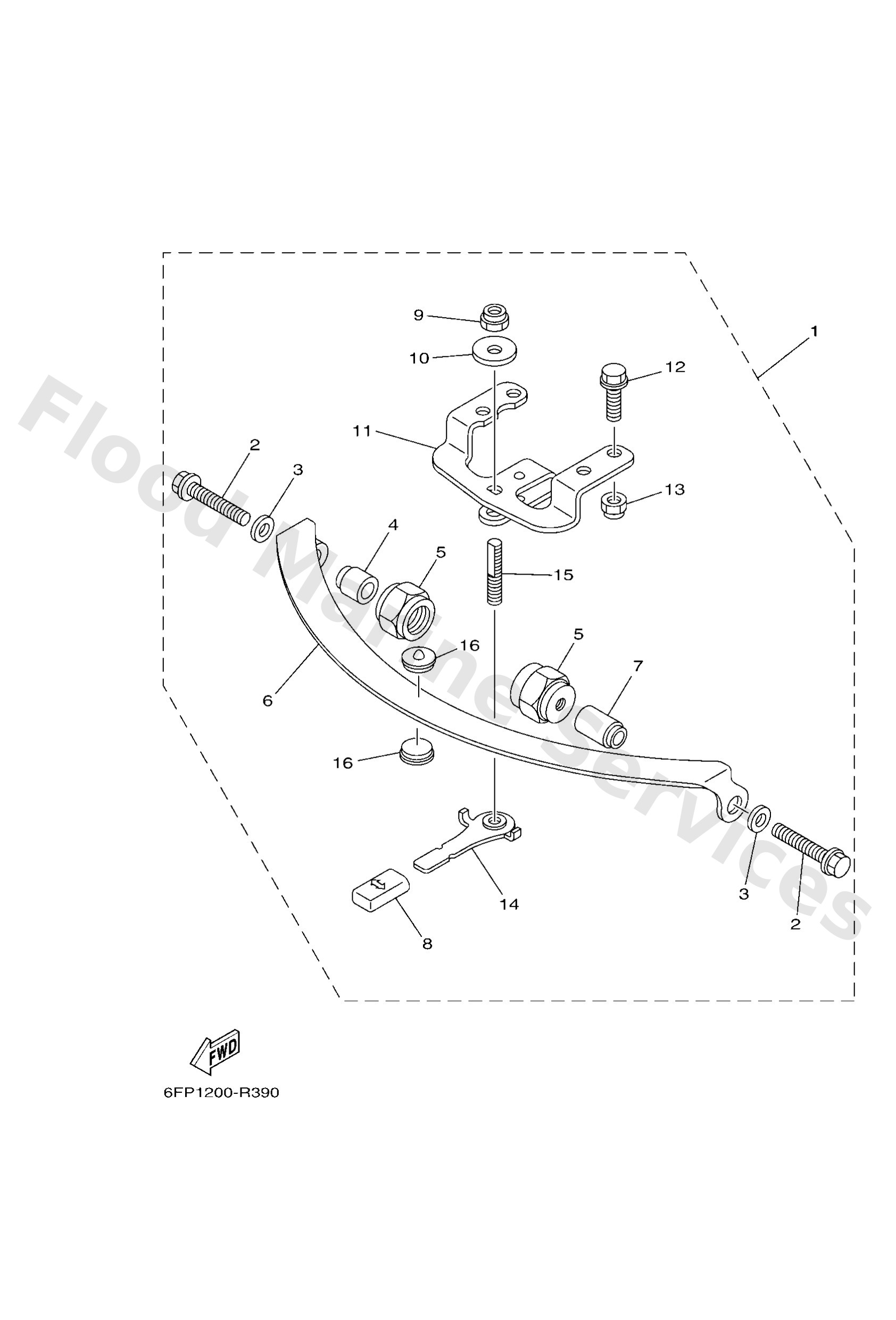

Diagram: OPTIONAL PARTS 4
Parts List
Reference
Description
Price
1
67G4250812
Steering friction assembly
Loading…
↗
2
9011908193
Bolt, with washer
Loading…
↗
3
9020108M01
Washer, plate(6l2)
Loading…
↗
4
67G4254100
Pipe 1
Loading…
↗
5
67G4254600
Nut
Loading…
↗
6
63D4252700
Plate, friction
Loading…
↗
7
67G4254110
Pipe 1
Loading…
↗
8
6824331801
Cover
Loading…
↗
9
9018510M14
Nut, self-locking
Loading…
↗
10
9020110M76
Washer, plate (6e5)
Loading…
↗
11
6X44252600
Plate, friction
Loading…
↗
12
97E9508525
Bolt, hexagon w/w deep recess
Loading…
↗
13
9018508057
Nut, nylon (6j8)
Loading…
↗
14
67G4256100
Knob, steering lock
Loading…
↗
15
67G4256200
Shaft, steering lock
Loading…
↗
16
63D4252800
Plate, friction
Loading…
↗
