F225XCB (2023)
OPTIONAL PARTS 5

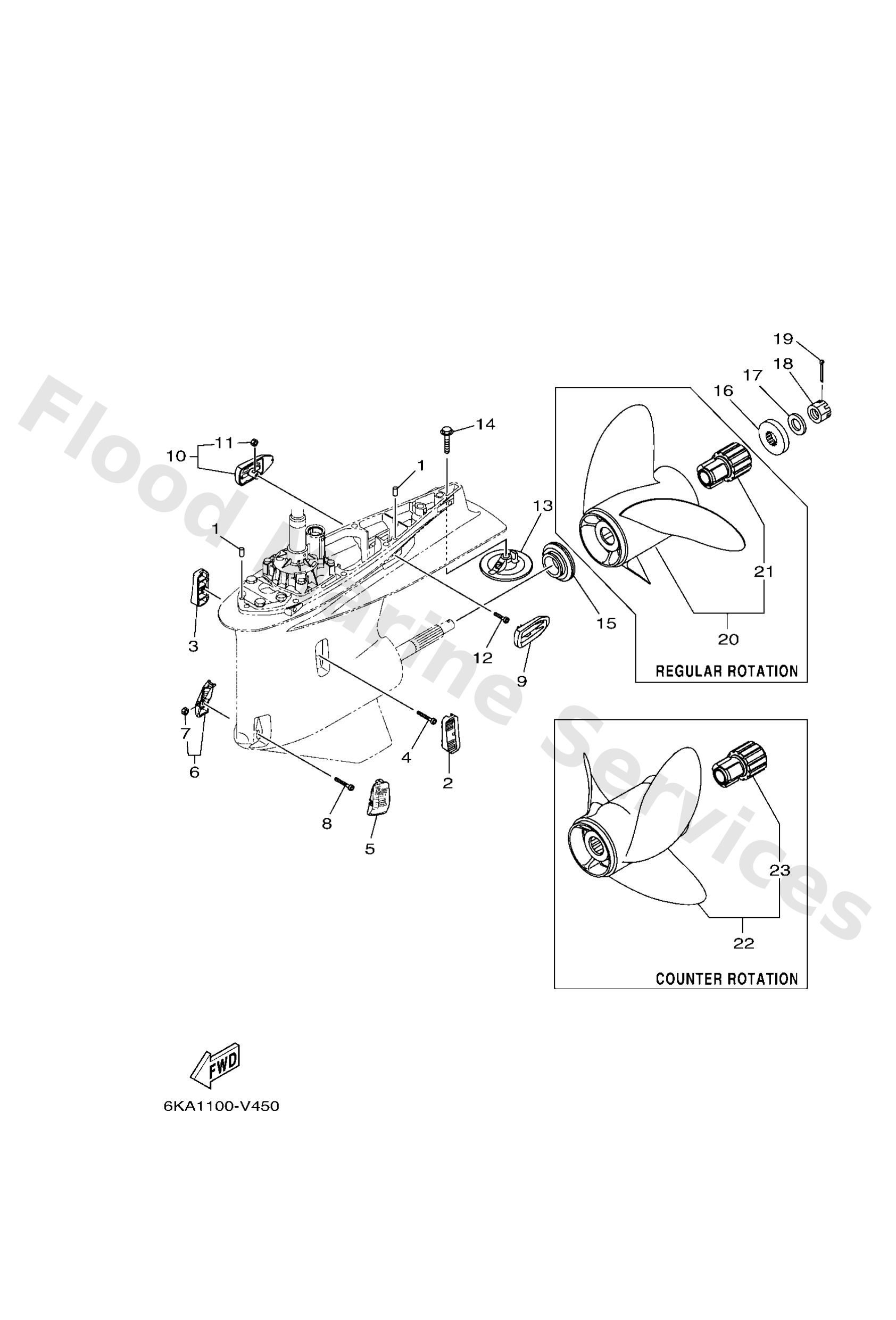

Diagram: OPTIONAL PARTS 5
Parts List
Reference
Description
Price
1
9360816M16
Pin, dowel(6t4)
Loading…
↗
2
6KA4521400
Cover, water inlet 1
Loading…
↗
3
6KA4521500
Cover, water inlet 2
Loading…
↗
4
9011005039
Bolt, hexagon socket head
Loading…
↗
5
6CE4522400
Cover, water inlet 3
Loading…
↗
6
6CE4522500
Cover, water inlet 4
Loading…
↗
7
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
9
6KA4525400
Cover, outlet 1
Loading…
↗
10
6KA4525500
Cover, outlet 2
Loading…
↗
12
9138005020
Bolt,socket
Loading…
↗
13
6CE4537300
Anode
Loading…
↗
14
9010510M00
Bolt, hexagon (663)
Loading…
↗
15
69J4598700
Spacer 1
Loading…
↗
16
6884599701
Spacer 2
Loading…
↗
17
9299018200
Washer (6e5)
Loading…
↗
18
9017118M04
Nut, castle (6e5)
Loading…
↗
19
9149040030
Pin, cotter (663)
Loading…
↗
20
6KA4597000
UR RH
Propeller (3X15-1/4"X18"-T)
Loading…
↗
20
6KA4597200
UR RH
Propeller (ss 3x15-1/4 x19 -t)
Loading…
↗
20
6KA4597400
UR RH
Propeller (ss 3x15 x20 -t)
Loading…
↗
20
6KA4597600
UR RH
Propeller (ss 3x15 x21 -t)
Loading…
↗
21
6CE45C8110
Damper rubber, propeller 1
Loading…
↗
22
6KB4597000
UR LH
Propeller (3X15-1/4"X18"-Tl)
Loading…
↗
22
6KB4597200
UR LH
Propeller (3X15-1/4"X19"-Tl)
Loading…
↗
22
6KB4597400
UR LH
Propeller (3X15"X20"-Tl)
Loading…
↗
22
6KB4597600
UR LH
Propeller (ss 3x15 x21 -tl)
Loading…
↗
