F300NSB (2025)
OPTIONAL PARTS 5

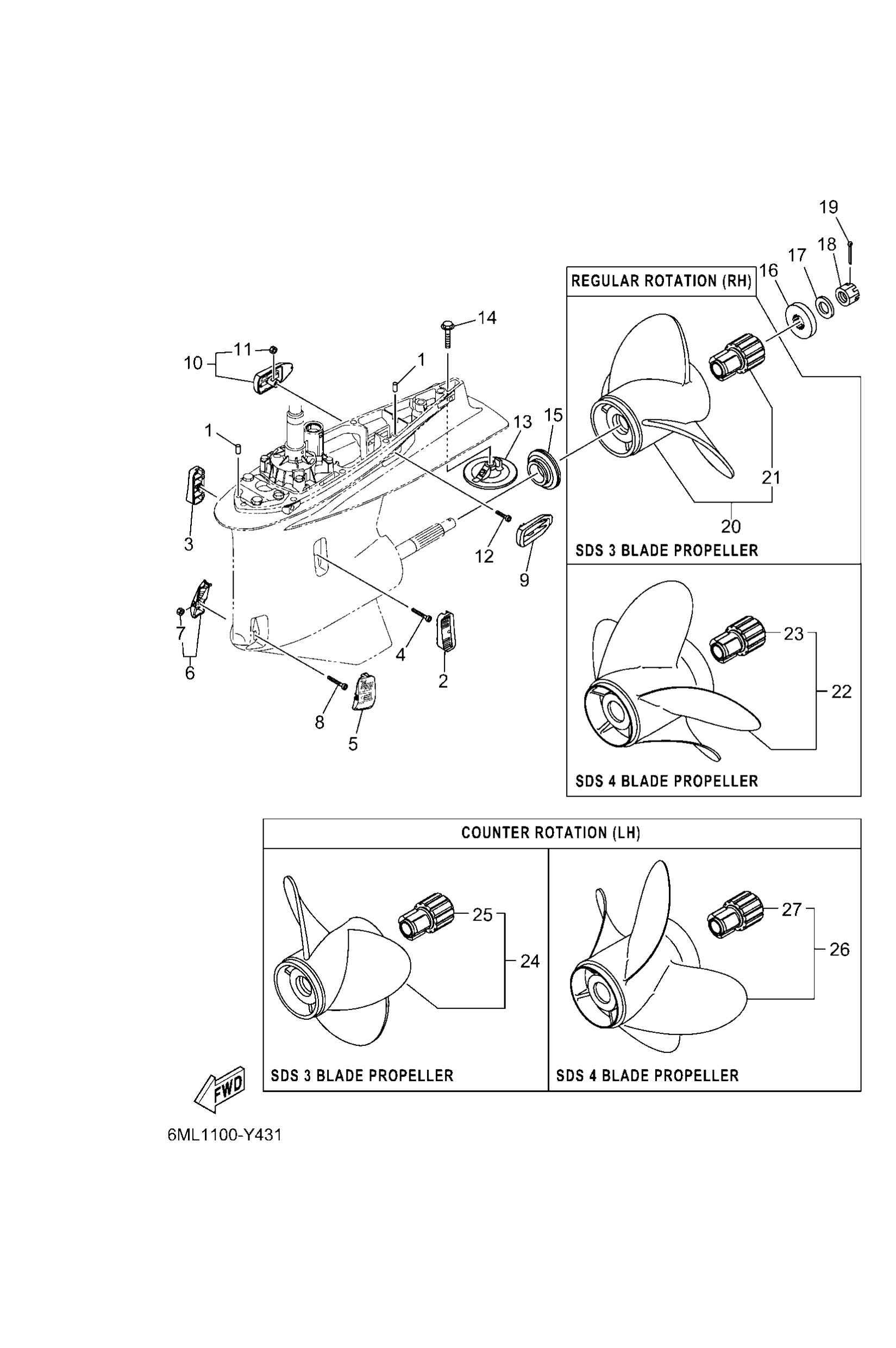

Diagram: OPTIONAL PARTS 5
Parts List
Reference
Description
Price
1
9360816M16
Pin, dowel(6t4)
Loading…
↗
2
6KA4521400
Cover, water inlet 1
Loading…
↗
3
6KA4521500
Cover, water inlet 2
Loading…
↗
4
9011005039
Bolt, hexagon socket head
Loading…
↗
5
6CE4522400
Cover, water inlet 3
Loading…
↗
6
6CE4522500
Cover, water inlet 4
Loading…
↗
7
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
9
6KA4525400
Cover, outlet 1
Loading…
↗
10
6KA4525500
Cover, outlet 2
Loading…
↗
12
9138005020
Bolt,socket
Loading…
↗
13
6CE4537300
Anode
Loading…
↗
14
9010510M00
Bolt, hexagon (663)
Loading…
↗
15
69J4598700
Spacer 1
Loading…
↗
16
6884599701
Spacer 2
Loading…
↗
17
9299018200
Washer (6e5)
Loading…
↗
18
9017118M04
Nut, castle (6e5)
Loading…
↗
19
9149040030
Pin, cotter (663)
Loading…
↗
20
60H4597000
UR RH SDS 3 BLADE
Propeller (3x14-1/4 x14 -m)
Loading…
↗
20
60H4597200
UR RH SDS 3 BLADE
Propeller (3x14-1/4 x16 -m)
Loading…
↗
20
60H4597400
UR RH SDS 3 BLADE
Propeller (3x14-1/4 x18 -m)
Loading…
↗
20
60H4597600
UR RH SDS 3 BLADE
Propeller (3x14-1/4 x20 -m)
Loading…
↗
20
60H4597800
UR RH SDS 3 BLADE
Propeller (3x14-1/4 x22 -m)
Loading…
↗
20
6CE4593020
UR RH SDS 3 BLADE
Sws2 w/sds (3x15-3/4 x13-t)
Loading…
↗
20
6CE45D7020
UR RH SDS 3 BLADE
Propeller (3X15-3/4"X14"-T)
Loading…
↗
20
6CE4597620
UR RH SDS 3 BLADE
Sws2 w/sds (3x15-3/4 x15-t)
Loading…
↗
20
6CE4593820
UR RH SDS 3 BLADE
Sws2 w/sds (3x15-1/2 x16 -t)
Loading…
↗
20
6CE4597820
UR RH SDS 3 BLADE
Sws2 w/sds (3x15-1/2 x 17-t)
Loading…
↗
20
6CE4593420
UR RH SDS 3 BLADE
Sws2 w/sds (3x15-1/4 x18 -t)
Loading…
↗
20
6CE4597020
UR RH SDS 3 BLADE
Sws2 w/sds (3x15-1/4 x19-t)
Loading…
↗
20
6CE4593220
UR RH SDS 3 BLADE
Sws2 w/sds (3x15 x20-t)
Loading…
↗
20
6CE4597220
UR RH SDS 3 BLADE
Sws2 w/sds (3x15 x21-t)
Loading…
↗
20
6CE4593620
UR RH SDS 3 BLADE
Sws2 w/sds (3x14-3/4 x22 -t)
Loading…
↗
20
6CE4597420
UR RH SDS 3 BLADE
Sws2 w/sds (3x14-3/4 x23-t)
Loading…
↗
20
6CE45D7220
UR RH SDS 3 BLADE
Propeller (3X14-3/4X24-T)
Loading…
↗
20
6CE45D7420
UR RH SDS 3 BLADE
Propeller (3X14-3/4X25-T)
Loading…
↗
20
68F4593220
UR RH SDS 3 BLADE
Reliance sds (3x14-1/2"x13"-m)
Loading…
↗
20
68F4593020
UR RH SDS 3 BLADE
Reliance sds (3x14-1/2"x14"-m)
Loading…
↗
20
68F4597020
UR RH SDS 3 BLADE
Reliance sds (3x14-1/2"x15" m)
Loading…
↗
20
68F4597220
UR RH SDS 3 BLADE
Reliance sds (3x14-1/4"x17"-m)
Loading…
↗
20
68F4597820
UR RH SDS 3 BLADE
Reliance sds (3x14-1/4"x18"-m)
Loading…
↗
20
68F4597420
UR RH SDS 3 BLADE
Reliance sds (3x13-3/4"x19"-m)
Loading…
↗
20
68F4597620
UR RH SDS 3 BLADE
Reliance sds (3x13-3/4"x21"-m)
Loading…
↗
20
6KA4597000
UR RH SDS 3 BLADE
Propeller (3X15-1/4"X18"-T)
Loading…
↗
20
6KA4597200
UR RH SDS 3 BLADE
Propeller (ss 3x15-1/4 x19 -t)
Loading…
↗
20
6KA4597400
UR RH SDS 3 BLADE
Propeller (ss 3x15 x20 -t)
Loading…
↗
20
6KA4597600
UR RH SDS 3 BLADE
Propeller (ss 3x15 x21 -t)
Loading…
↗
21
6CE45C8110
Damper rubber, propeller 1
Loading…
↗
22
6CE45B7020
UR RH SDS 4 BLADE
Sws hs4 sds (ss 4x15"x21"-t)
Loading…
↗
22
6CE45B7220
UR RH SDS 4 BLADE
Sws hs4 sds (ss 4x15"x22"-t)
Loading…
↗
22
6CE45B7420
UR RH SDS 4 BLADE
Sws hs4 sds (ss 4x15"x23"-t)
Loading…
↗
22
6ML45B7000
UR RH SDS 4 BLADE
Propeller (4X15-1/4"X18"-T)
Loading…
↗
22
6ML45B7200
UR RH SDS 4 BLADE
Propeller (4X15-1/4"X19"-T)
Loading…
↗
22
6ML45B7400
UR RH SDS 4 BLADE
Propeller (4X15-1/4"X20"-T)
Loading…
↗
22
6ML45B7600
UR RH SDS 4 BLADE
Propeller (4X15"X21"-T)
Loading…
↗
22
6ML45B7800
UR RH SDS 4 BLADE
Propeller (4X15"X22"-T)
Loading…
↗
22
6ML45B8000
UR RH SDS 4 BLADE
Propeller (4X15"X23"-T)
Loading…
↗
22
6ML45B8200
UR RH SDS 4 BLADE
Propeller (4X15"X24"-T)
Loading…
↗
22
6ML45B8400
UR RH SDS 4 BLADE
Propeller (4X15"X25"-T)
Loading…
↗
22
6ML45B8600
UR RH SDS 4 BLADE
Propeller (4X15"X26"-T)
Loading…
↗
24
60J4597000
UR LH SDS 3 BLADE
Propeller (3X14-1/4"X14"-Ml)
Loading…
↗
24
60J4597200
UR LH SDS 3 BLADE
Propeller (3x14-1/4 x16 -ml)
Loading…
↗
24
60J4597400
UR LH SDS 3 BLADE
Propeller (3X14-1/4"X18"-Ml)
Loading…
↗
24
60J4597600
UR LH SDS 3 BLADE
Propeller (3X14-1/4"X20"-Ml)
Loading…
↗
24
60J4597800
UR LH SDS 3 BLADE
Propeller (3X14-1/4"X22"-Ml)
Loading…
↗
24
6CF4593020
UR LH SDS 3 BLADE
Sws2 w/sds (3x15-3/4 x13-tl)
Loading…
↗
24
6CF45D7020
UR LH SDS 3 BLADE
Propeller (3X15-3/4"X14"-Tl)
Loading…
↗
24
6CF4597620
UR LH SDS 3 BLADE
Sws2 w/sds (3x15-3/4 x15-tl)
Loading…
↗
24
6CF4593820
UR LH SDS 3 BLADE
Propeller (3X15-1/2"X16"-Tl)
Loading…
↗
24
6CF4597820
UR LH SDS 3 BLADE
Sws2 w/sds (3x15-1/2 x17-tl)
Loading…
↗
24
6CF4593420
UR LH SDS 3 BLADE
Sws2 w/sds (3x15-1/4 x18 -tl)
Loading…
↗
24
6CF4597020
UR LH SDS 3 BLADE
Sws2 w/sds (3x15-1/4 x19-tl)
Loading…
↗
24
6CF4593220
UR LH SDS 3 BLADE
Sws2 w/sds (3x15 x20-tl)
Loading…
↗
24
6CF4597220
UR LH SDS 3 BLADE
Sws2 w/sds (3x15 x21-tl)
Loading…
↗
24
6CF4593620
UR LH SDS 3 BLADE
Sws2 w/sds (3x14-3/4 x22 -tl)
Loading…
↗
24
6CF4597420
UR LH SDS 3 BLADE
Sws2 w/sds (3x14-3/4 x23-tl)
Loading…
↗
24
68G4593020
UR LH SDS 3 BLADE
Reliance sds (3x14-1/2"x14"-ml
Loading…
↗
24
68G4597020
UR LH SDS 3 BLADE
Reliance sds (3x14-1/2"x15" ml
Loading…
↗
24
68G4597220
UR LH SDS 3 BLADE
Reliance sds (3x14-1/4"x17"-ml
Loading…
↗
24
68G4597820
UR LH SDS 3 BLADE
Reliance sds (3x14-1/4"x18"-ml
Loading…
↗
24
68G4597420
UR LH SDS 3 BLADE
Reliance sds (3x13-3/4"x19"-ml
Loading…
↗
24
68G4597620
UR LH SDS 3 BLADE
Reliance sds (3x13-3/4"x21"-ml
Loading…
↗
24
6KB4597000
UR LH SDS 3 BLADE
Propeller (3X15-1/4"X18"-Tl)
Loading…
↗
24
6KB4597200
UR LH SDS 3 BLADE
Propeller (3X15-1/4"X19"-Tl)
Loading…
↗
24
6KB4597400
UR LH SDS 3 BLADE
Propeller (3X15"X20"-Tl)
Loading…
↗
24
6KB4597600
UR LH SDS 3 BLADE
Propeller (ss 3x15 x21 -tl)
Loading…
↗
26
6CF45B7020
UR LH SDS 4 BLADE
Sws hs4 sds (ss 4x15"x21"-tl)
Loading…
↗
26
6CF45B7220
UR LH SDS 4 BLADE
Sws hs4 sds (ss 4x15"x22"-tl)
Loading…
↗
26
6CF45B7420
UR LH SDS 4 BLADE
Sws hs4 sds (ss 4x15"x23"-tl)
Loading…
↗
26
6MM45B7000
UR LH SDS 4 BLADE
Propeller (4X15-1/4"X18"-Tl)
Loading…
↗
26
6MM45B7200
UR LH SDS 4 BLADE
Propeller (4X15-1/4"X19"-Tl)
Loading…
↗
26
6MM45B7400
UR LH SDS 4 BLADE
Propeller (4X15-1/4"X20"-Tl)
Loading…
↗
26
6MM45B7600
UR LH SDS 4 BLADE
Propeller (4X15"X21"-Tl)
Loading…
↗
26
6MM45B7800
UR LH SDS 4 BLADE
Propeller (4X15"X22"-Tl)
Loading…
↗
26
6MM45B8000
UR LH SDS 4 BLADE
Propeller (4X15"X23"-Tl)
Loading…
↗
26
6MM45B8200
UR LH SDS 4 BLADE
Propeller (4X15"X24"-Tl)
Loading…
↗
26
6MM45B8400
UR LH SDS 4 BLADE
Propeller (4X15"X25"-Tl)
Loading…
↗
26
6MM45B8600
UR LH SDS 4 BLADE
Propeller (4X15"X26"-Tl)
Loading…
↗
