F100FET (2017)
OPTIONAL PARTS 6

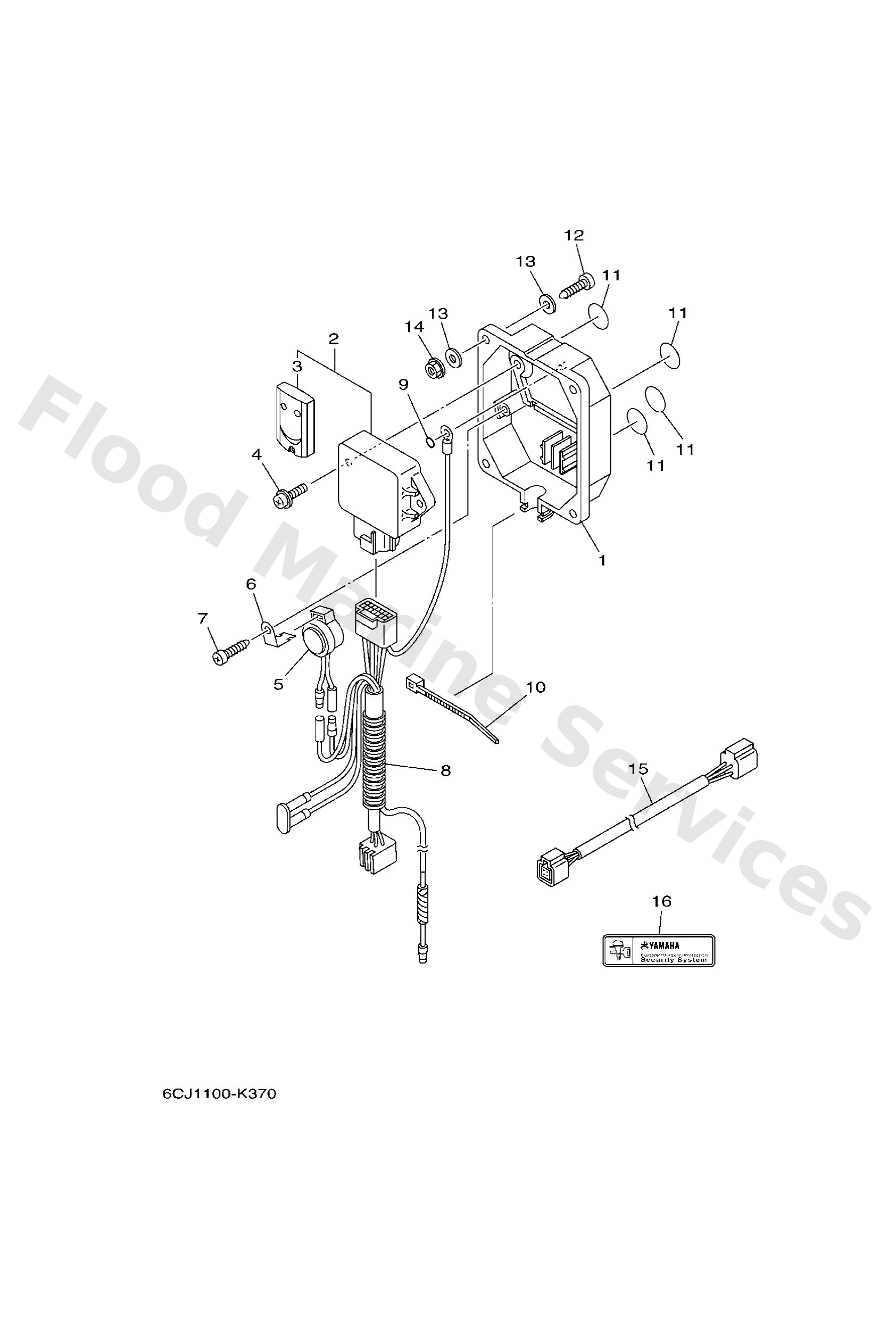

Diagram: OPTIONAL PARTS 6
Parts List
Reference
Description
Price
1
6Y88626700
EXCEPT FOR RUS
Case complete 1
Loading…
↗
2
6Y88626002
EXCEPT FOR RUS
Remote control unit assembly
Loading…
↗
3
6AA8626100
Xmtr. comp.
Loading…
↗
4
9798006216
EXCEPT FOR RUS
Screw, with washer(6h2)
Loading…
↗
5
6X48338300
EXCEPT FOR RUS
Buzzer
Loading…
↗
6
6X48338600
EXCEPT FOR RUS
Stay, buzzer
Loading…
↗
7
9778060620
EXCEPT FOR RUS
Screw, tapping(6k8)
Loading…
↗
8
6Y88250910
EXCEPT FOR RUS
Wire, sub lead
Loading…
↗
9
9321004279
EXCEPT FOR RUS
O-ring (4a0)
Loading…
↗
10
9046511M10
EXCEPT FOR RUS
Clamp
Loading…
↗
11
6Y88454G00
EXCEPT FOR RUS
Patch 1
Loading…
↗
12
9788006035
UR EXCEPT FOR RUS
Screw, pan head(6h4)
Loading…
↗
12
9016706M00
UR EXCEPT FOR RUS
Screw, tapping (6h4)
Loading…
↗
13
9020106M30
EXCEPT FOR RUS
Washer, plate (6a1)
Loading…
↗
14
9578006300
EXCEPT FOR RUS
Nut, nylon (6g1)
Loading…
↗
15
6Y88252111
EXCEPT FOR RUS
Pigtail bus wire 0.6m-2ft
Loading…
↗
16
6Y84827700
EXCEPT FOR RUS
Sticker 1
Loading…
↗
