F250NSB (2021)
OPTIONAL PARTS 6

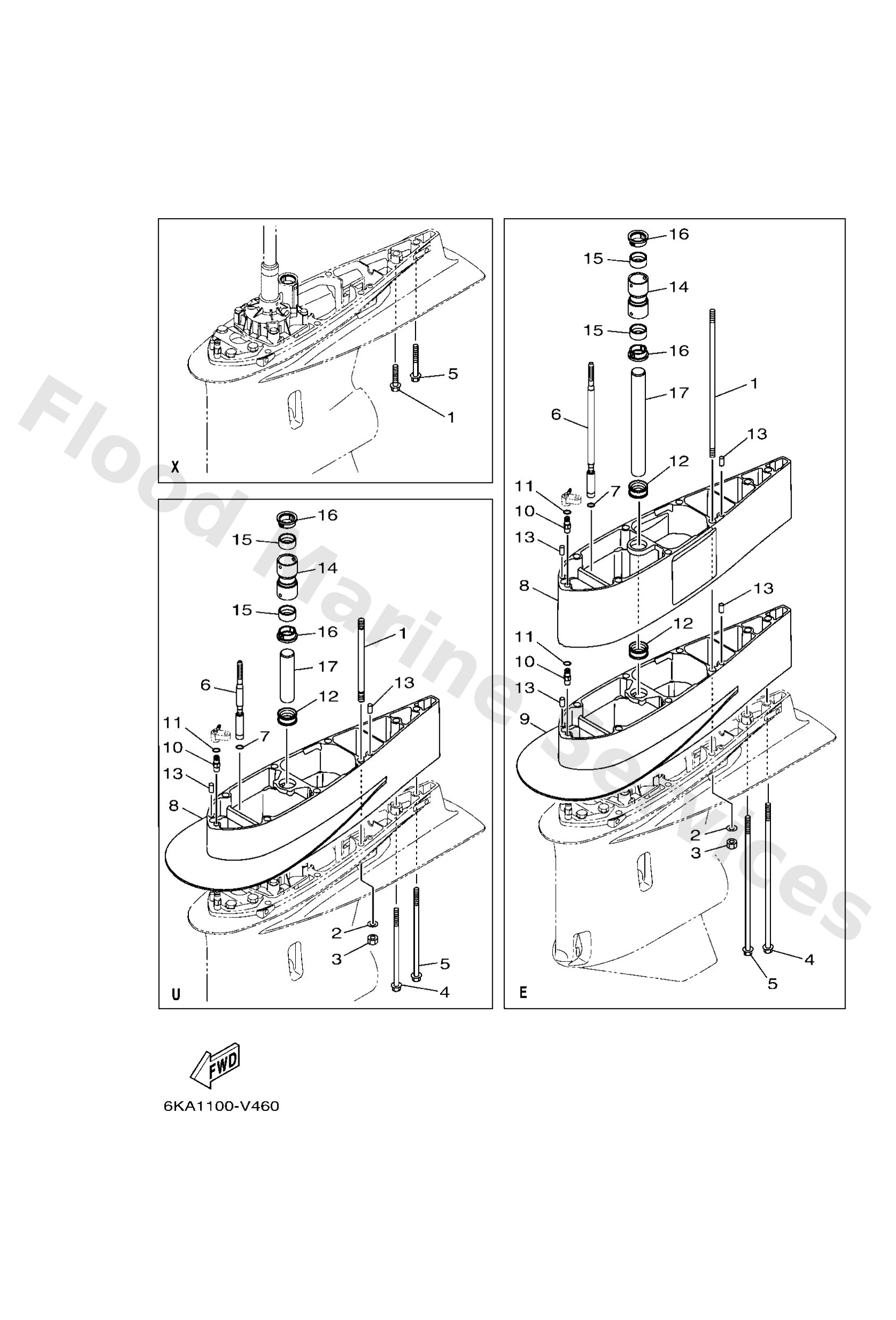

Diagram: OPTIONAL PARTS 6
Parts List
Reference
Description
Price
1
9011610067
UR U(30.2")
Bolt, stud
Loading…
↗
1
9011610066
UR E(35.2")
Bolt, stud
Loading…
↗
1
9011910024
UR X(25.2")
Bolt, with washer
Loading…
↗
2
9299510600
U(30.2"),E(35.2")
Washer, plate
Loading…
↗
3
9538010600
U(30.2"),E(35.2")
Nut(624)
Loading…
↗
4
9011910009
UR U(30.2")
Bolt, with washer
Loading…
↗
4
9011910061
UR E(35.2")
Bolt, with washer
Loading…
↗
5
97E7510570
UR X(25.2")
Bolt, hexagon w/w deep recess
Loading…
↗
5
9011910008
UR U(30.2")
Bolt, with washer
Loading…
↗
5
9011910060
UR E(35.2")
Bolt, with washer
Loading…
↗
6
6KA4419000
UR U(30.2")
Jt. shift rod comp.
Loading…
↗
6
6KA4419010
UR E(35.2")
Jt. shift rod comp.
Loading…
↗
7
9321009165
U(30.2"),E(35.2")
O-ring
Loading…
↗
8
6CE4521110CE
UR WHITE,E(35.2")
Extension
Loading…
↗
8
6CE45211108D
UR GRAY, E(35.2")
Extension
Loading…
↗
8
6KA45211008D
UR GRAY, U(30.2")
Extension
Loading…
↗
8
6KA4521100CE
UR WHITE,U(30.2")
Extension
Loading…
↗
10
63P4537800
UR U(30.2")
Nipple, hose
Loading…
↗
11
9321007003
UR U(30.2")
O-ring (11m)
Loading…
↗
12
6AW4436601
UR U(30.2")
Damper, water seal 2
Loading…
↗
13
9360816M16
UR U(30.2")
Pin, dowel(6t4)
Loading…
↗
14
6CE4436200
U(30.2"),E(35.2")
Tube, water 2
Loading…
↗
15
6AW4436501
U(30.2"),E(35.2")
Damper, water seal 1
Loading…
↗
16
6AW4431200
U(30.2"),E(35.2")
Cover, water pump housing
Loading…
↗
17
6AW4436300
UR U(30.2")
Tube, water 3
Loading…
↗
17
6CE4436300
UR E(35.2")
Tube, water 3
Loading…
↗
