Yamaha Outboard Parts - OPTIONAL PARTS 6 - F25GET (2021) | Flood Marine

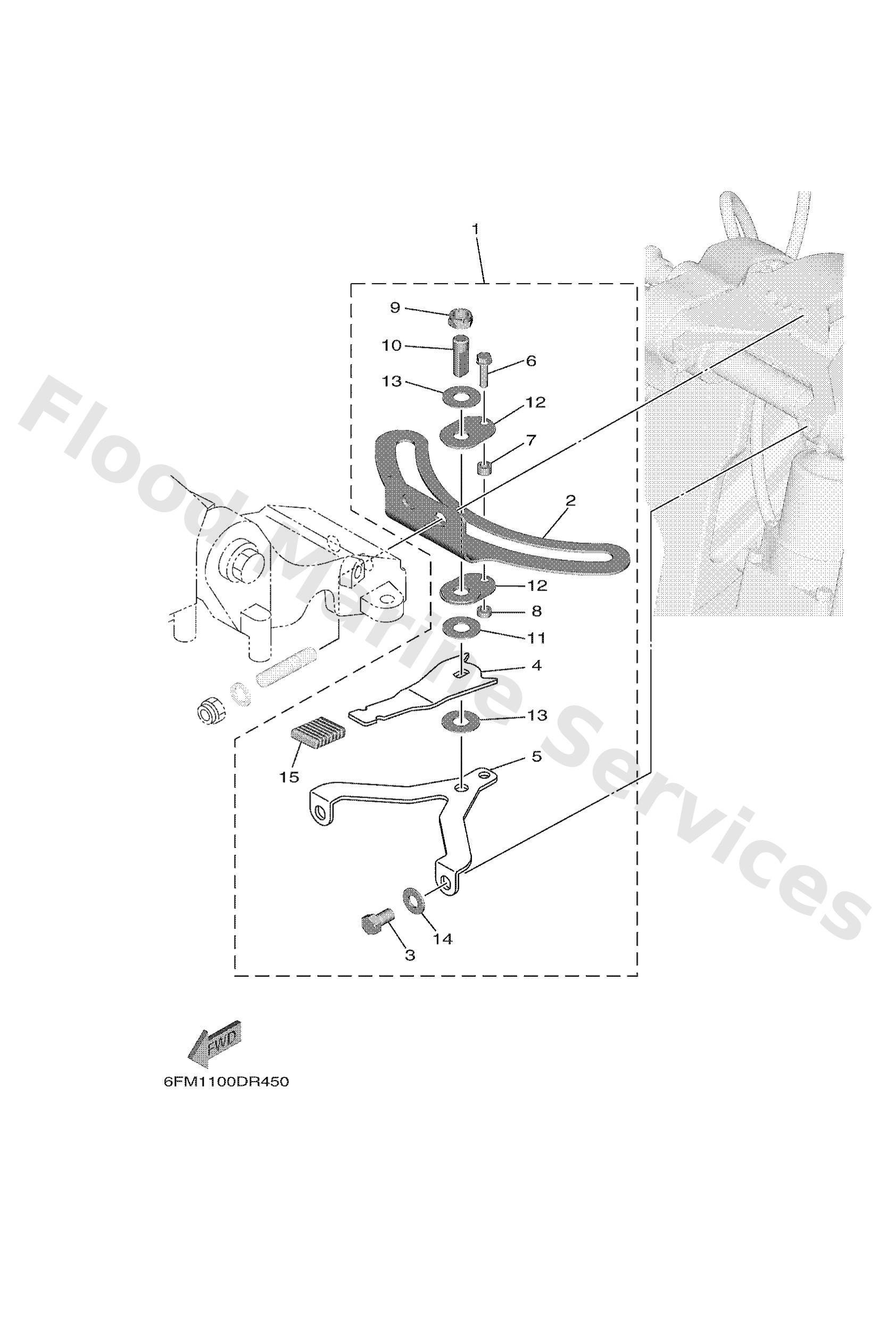

Diagram: OPTIONAL PARTS 6

Diagram

Parts List

Reference
Description
Price


1
6FM4250812
Steering friction assembly
Loading…

↗
2
6FM4252700
Plate, friction
Loading…

↗
3
97D9508014
Bolt, hexagon deep recess
Loading…

↗
4
6FM4256110
Knob, steering lock
Loading…

↗
5
6FM4252510
Plate, friction
Loading…

↗
6
9759505520
Bolt, With Washer
Loading…

↗
7
9038705054
Collar
Loading…

↗
8
9038705053
Collar
Loading…

↗
9
9018510M14
Nut, self-locking
Loading…

↗
10
67C42562A0
Shaft, steering lock
Loading…

↗
11
9020210M56
Washer, plate
Loading…

↗
12
65W4252800
Plate, friction
Loading…

↗
13
90201106M5
Washer, plate(3gm)
Loading…

↗
14
9299508200
Ybs66-8 washer, plain
Loading…

↗
15
6894363301
Cover, tilt lever
Loading…

↗
