F25GMH (2018)
OPTIONAL PARTS 6

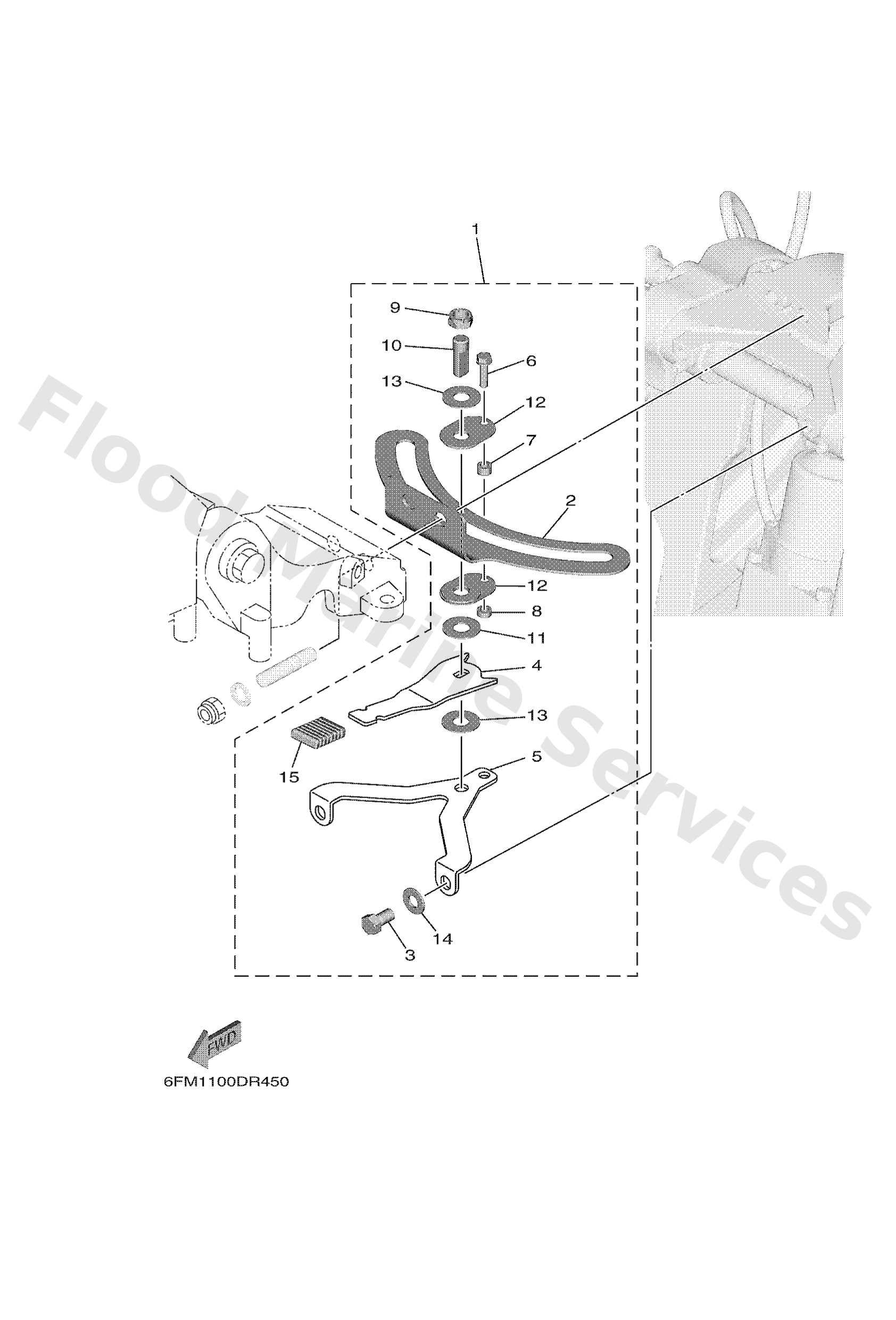

Diagram: OPTIONAL PARTS 6
Parts List
Reference
Description
Price
1
6FM4250810
Steering friction assembly
Loading…
↗
2
6FM4252700
Plate, friction
Loading…
↗
3
9010908M91
Bolt, hexagon deep recess
Loading…
↗
4
6FM4256110
Knob, steering lock
Loading…
↗
5
6FM4252510
Plate, friction
Loading…
↗
6
9759505520
Bolt, With Washer
Loading…
↗
7
9038705054
Collar
Loading…
↗
8
9038705053
Collar
Loading…
↗
9
9018510M14
Nut, self-locking
Loading…
↗
10
67C4256200
Shaft, steering lock
Loading…
↗
11
9020210M56
Washer, plate
Loading…
↗
12
65W4252800
Plate, friction
Loading…
↗
13
90201106M5
Washer, plate(3gm)
Loading…
↗
14
9299508200
Ybs66-8 washer, plain
Loading…
↗
15
6894363300
Cover, tilt lever
Loading…
↗
