F300NCA2 FOR LOWER GRAY (2020)
OPTIONAL PARTS 7

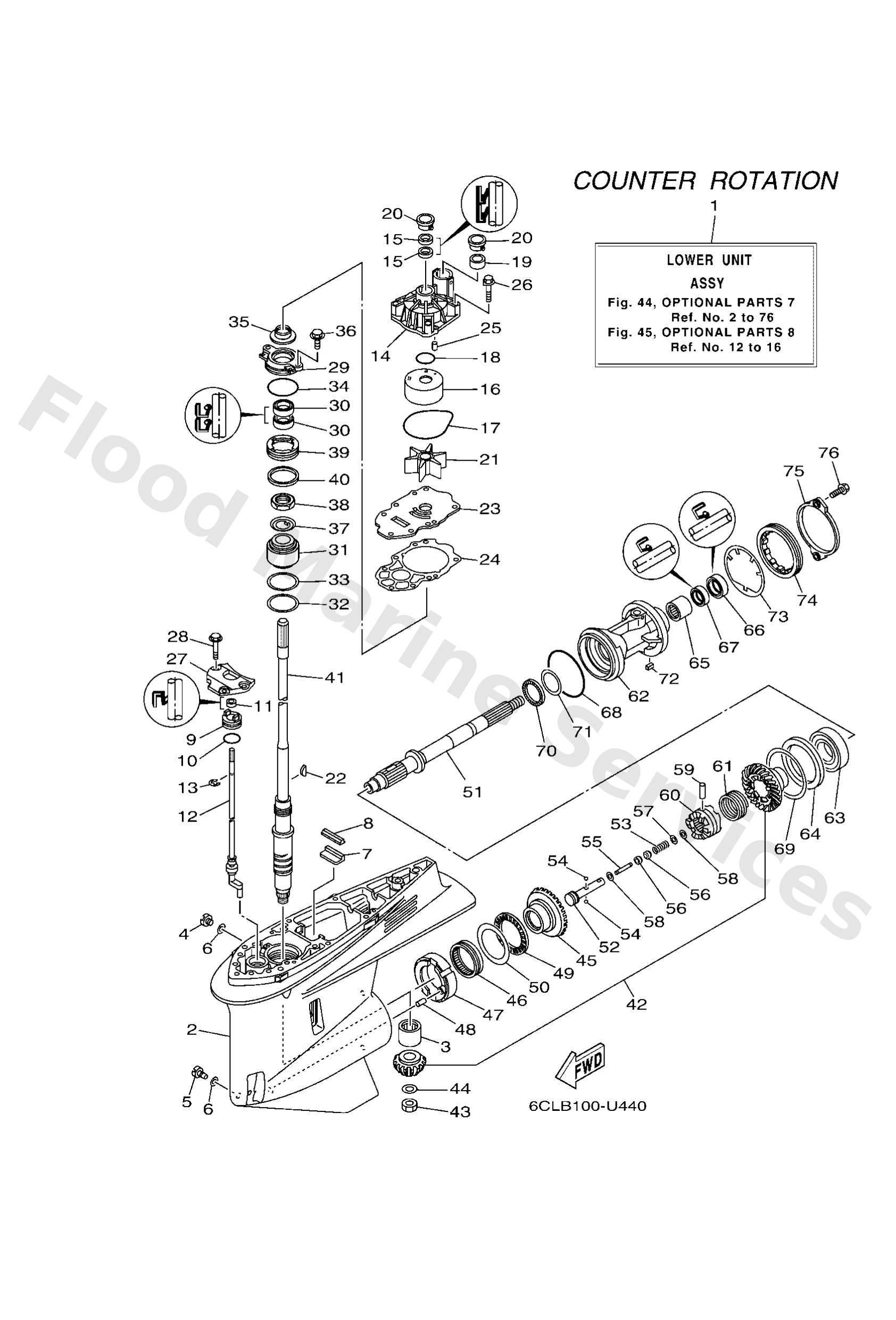

Diagram: OPTIONAL PARTS 7
Parts List
Reference
Description
Price
1
6CF4530005CE
X(25.3"),LH
Lower Unit assembly
Loading…
↗
1
6CF4530015CE
U(30.3"),LH
-
Loading…
↗
1
6CF4530023CE
E(35.3"),LH
-
Loading…
↗
2
6CE4530100CE
Casing, lower
Loading…
↗
3
9331183280
Ball bearing
Loading…
↗
4
9034008002
Plug, straight screw
Loading…
↗
5
6884534110
Plug, drain
Loading…
↗
6
9043008003
Gasket
Loading…
↗
7
6634537600
Guide, seal damper
Loading…
↗
8
6CE4537500
Damper, seal
Loading…
↗
9
6CE4532110
X(25.3")
Plate
Loading…
↗
9
6CE4532120
U(30.3"),E(35.3")
Plate
Loading…
↗
10
9321033M49
O-ring(6l5)
Loading…
↗
11
9310609014
X(25.3")
Oil seal
Loading…
↗
11
9310610001
U(30.3"),E(35.3")
Oil seal
Loading…
↗
12
6CF4415000
X(25.3"),LH
Shift cam assembly
Loading…
↗
12
6CF4415010
U(30.3"),LH
Shift cam assembly
Loading…
↗
12
6CF4415020
E(35.3"),LH
Shift Cam assembly
Loading…
↗
13
9900108600
X(25.3")
Circlip(2r6)
Loading…
↗
13
9900109600
U(30.3"),E(35.3")
Circlip(j51)
Loading…
↗
14
6CE4431101
Housing, water pump
Loading…
↗
15
9310422M07
Oil seal(61a)
Loading…
↗
16
6AW4432200
Insert, cartridge
Loading…
↗
17
9321094003
O-ring
Loading…
↗
18
9321037160
O-ring (6g8)
Loading…
↗
19
6AW4436500
Damper, water seal 1
Loading…
↗
20
6AW4431200
Cover, water pump housing
Loading…
↗
21
6CE4435200
Impeller
Loading…
↗
22
9028004002
Key, woodruff
Loading…
↗
23
6CE4432301
Outer plate, cartridge
Loading…
↗
24
6CE4431500
Gasket, water pump
Loading…
↗
25
9360612019
Pin, dowel (614)
Loading…
↗
26
9011908191
Bolt, with washer
Loading…
↗
27
6CB4431200
Cover, water pump housing
Loading…
↗
28
9011908180
Bolt, with washer
Loading…
↗
29
6CE45335009S
Housing, oil seal
Loading…
↗
30
9310128019
Oil seal
Loading…
↗
31
9339999966
Bearing
Loading…
↗
32
9020162008
Washer, plate
Loading…
↗
33
6CE4558700
UR
Shim (t:0.10mm)
Loading…
↗
33
6CE4558710
UR
Shim (t:0.12mm)
Loading…
↗
33
6CE4558720
UR
Shim (t:0.15mm)
Loading…
↗
33
6CE4558730
UR
Shim (t:0.18mm)
Loading…
↗
33
6CE4558740
UR
Shim (t:0.30mm)
Loading…
↗
33
6CE4558750
UR
Shim (t:0.40mm)
Loading…
↗
33
6CE4558760
UR
Shim (t:0.50mm)
Loading…
↗
34
9321064488
93210-64488
Loading…
↗
35
6AW4534400
Cover, oil seal
Loading…
↗
36
97E9508520
Bolt, hexagon w/w deep recess
Loading…
↗
37
9021430003
Washer, claw
Loading…
↗
38
9017030M18
Nut(6t5)
Loading…
↗
39
6CE4524400
Nut
Loading…
↗
40
6CE4553900
Spacer 2
Loading…
↗
41
6CE4550100
X(25.3")
Drive shaft comp.
Loading…
↗
41
6CE4550110
U(30.3")
Drive shaft comp.
Loading…
↗
41
6CE4550120
E(35.3")
Drive Shaft Comp.
Loading…
↗
42
6CF4555000
Gear set
Loading…
↗
43
9017016M19
Nut(6t5)
Loading…
↗
44
9020116M00
Washer, plate(6t5)
Loading…
↗
45
6CF4556001
Gear (21t)
Loading…
↗
46
9331185894
Bearing
Loading…
↗
47
6CB4582400
Adapter
Loading…
↗
48
9360816M16
Pin, dowel(6t4)
Loading…
↗
49
9334067011
Bearing
Loading…
↗
50
6CB4556700
UR
Shim (t:2.00mm)
Loading…
↗
50
6CB4556710
UR
Shim (t:2.03mm)
Loading…
↗
50
6CB4556720
UR
Shim (t:2.06mm)
Loading…
↗
50
6CB4556730
UR
Shim (t:2.09mm)
Loading…
↗
50
6CB4556740
UR
Shim (t:2.12mm)
Loading…
↗
50
6CB4556750
UR
Shim (t:2.15mm)
Loading…
↗
51
6CF4561101
Shaft, propeller
Loading…
↗
52
6CB4563400
Slide, shift
Loading…
↗
53
9050110M77
Spring, compression(61a)
Loading…
↗
54
9350104011
Ball
Loading…
↗
55
6H14566800
Shaft, free 1
Loading…
↗
56
61A4563500
Plunger, shift
Loading…
↗
57
9020102M00
Washer, plate(61a)
Loading…
↗
58
9018302M03
Nut, spring (6h1)
Loading…
↗
59
9025008M07
Pin, straight (6g5)
Loading…
↗
60
6CE4563100
Clutch, dog
Loading…
↗
61
6E54563301
Ring, cross pin
Loading…
↗
62
6CF4533201CA
Housing, bearing
Loading…
↗
63
9333200048
Bearing(6k0)
Loading…
↗
64
6CF4557600
Washer, thrust 2
Loading…
↗
65
9331543061
Bearing
Loading…
↗
66
9310130030
Oil seal
Loading…
↗
67
9310130019
Oil seal
Loading…
↗
68
9321102001
O-ring
Loading…
↗
69
6CB4557700
UR
Shim (t:0.10mm)
Loading…
↗
69
6CB4557710
UR
Shim (t:0.12mm)
Loading…
↗
69
6CB4557720
UR
Shim (t:0.15mm)
Loading…
↗
69
6CB4557730
UR
Shim (t:0.18mm)
Loading…
↗
69
6CB4557740
UR
Shim (t:0.30mm)
Loading…
↗
69
6CB4557750
UR
Shim (t:0.40mm)
Loading…
↗
69
6CB4557760
UR
Shim (t:0.50mm)
Loading…
↗
70
93341440U5
Bearing, thrust (6k0)
Loading…
↗
71
6K14557801
UR
Shim (t:0.10mm)
Loading…
↗
71
6K14557810
UR
Shim (t:0.12mm)
Loading…
↗
71
6K14557820
UR
Shim (t:0.15mm)
Loading…
↗
71
6K14557830
UR
Shim (t:0.18mm)
Loading…
↗
71
6K14557840
UR
Shim (t:0.30mm)
Loading…
↗
71
6K14557850
UR
Shim (t:0.40mm)
Loading…
↗
71
6K14557860
UR
Shim (t:0.50mm)
Loading…
↗
72
9028205008
Key, straight
Loading…
↗
73
6CB4538300
Washer, claw
Loading…
↗
74
6CB4538400
Nut
Loading…
↗
75
6CE4536110
Cap, lower casing
Loading…
↗
76
9010508M61
Bolt, washer based(62x)
Loading…
↗
