F225NCA2 (2020)
OPTIONAL PARTS 8

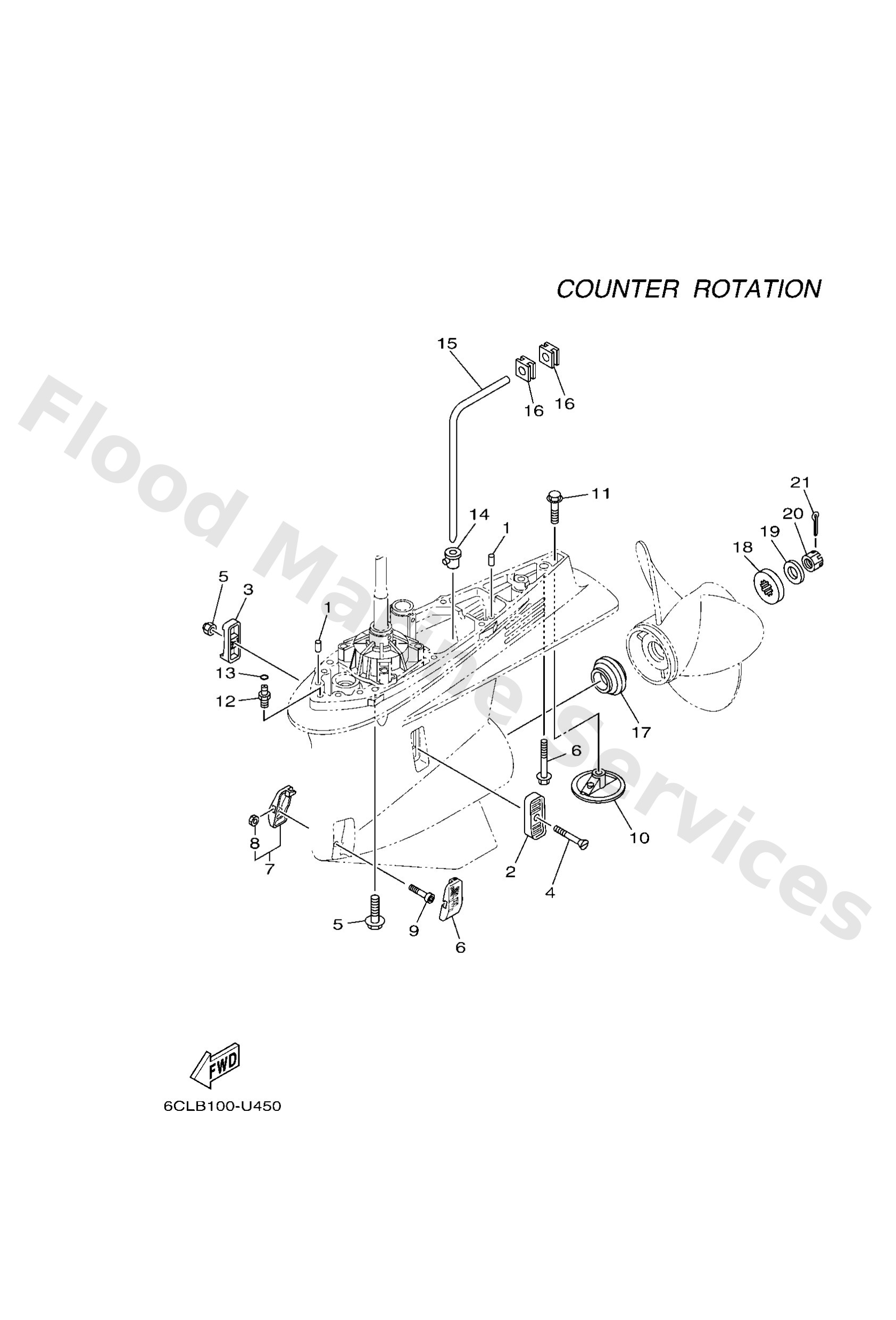

Diagram: OPTIONAL PARTS 8
Parts List
Reference
Description
Price
1
9360816M16
Pin, dowel(6t4)
Loading…
↗
2
6P24521400
Cover, water inlet 1
Loading…
↗
3
6P24521500
Cover, water inlet 2
Loading…
↗
4
9015205M08
Screw, countersunk
Loading…
↗
5
9018505002
Nut nylon (sus)(ex4)
Loading…
↗
6
6CE4522400
Cover, water inlet 3
Loading…
↗
7
6CE4522500
Cover, water inlet 4
Loading…
↗
9
9011005039
Bolt, hexagon socket head
Loading…
↗
10
6CE4537300
Anode
Loading…
↗
11
9010510M00
Bolt, hexagon (663)
Loading…
↗
12
63P4537800
Nipple, hose
Loading…
↗
13
9321007003
O-ring (11m)
Loading…
↗
14
6D04436700
Damper, water seal 3
Loading…
↗
15
6D04436201
Tube, water 2
Loading…
↗
16
6D04436600
Damper, water seal 2
Loading…
↗
17
69J4598700
Spacer 1
Loading…
↗
18
6884599701
Spacer 2
Loading…
↗
19
9299018200
Washer (6e5)
Loading…
↗
20
9017118M04
Nut, castle (6e5)
Loading…
↗
21
9149040030
Pin, cotter (663)
Loading…
↗
