F300NCA2 FOR LOWER GRAY (2020)
OPTIONAL PARTS 9

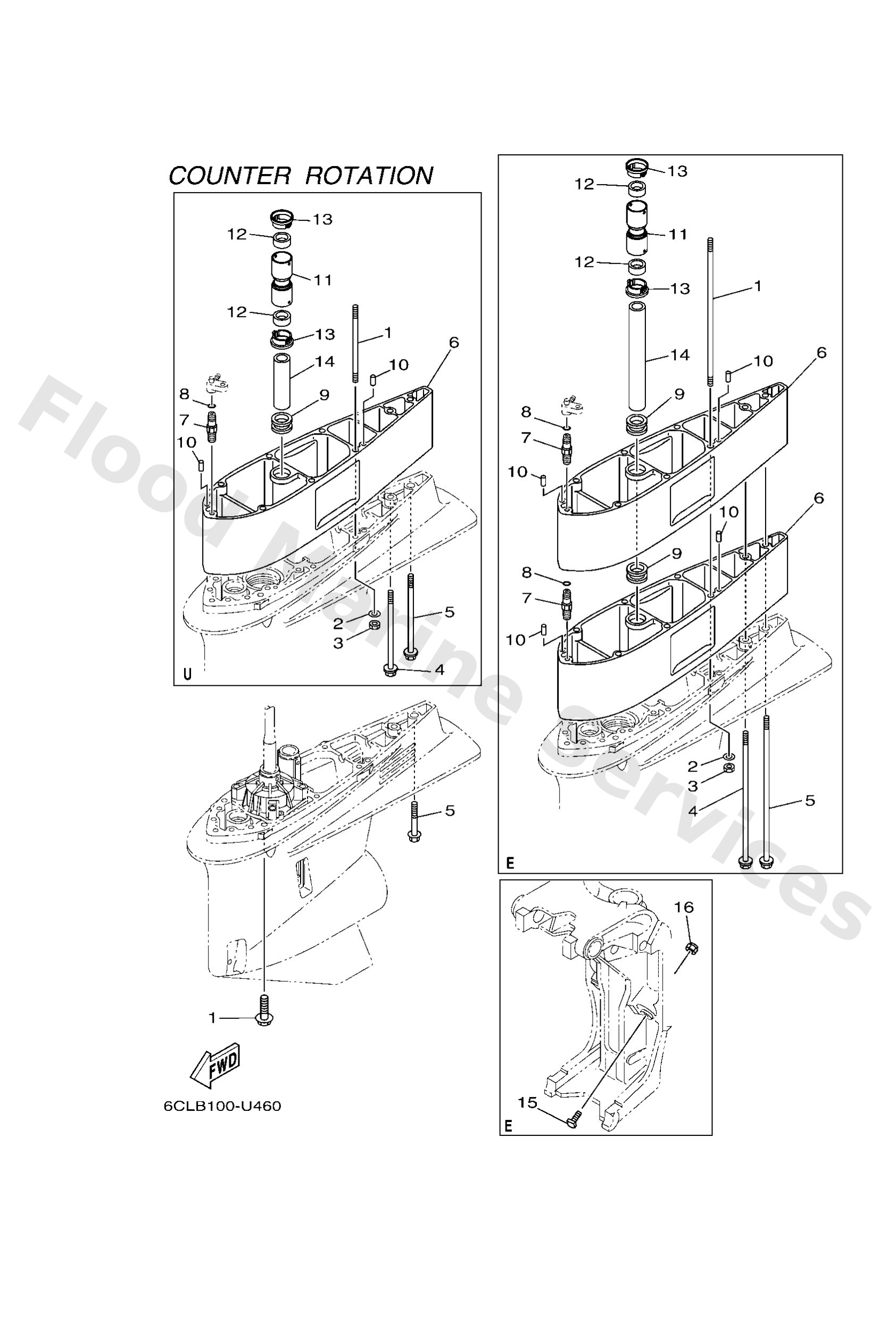

Diagram: OPTIONAL PARTS 9
Parts List
Reference
Description
Price
1
9011610041
U(30.3")
Bolt, stud
Loading…
↗
1
9011610066
E(35.3")
Bolt, stud
Loading…
↗
1
9011910038
X(25.3")
Bolt, with washer
Loading…
↗
2
9020110048
U(30.3"),E(35.3")
Washer, plate
Loading…
↗
3
9017010009
U(30.3"),E(35.3")
Nut
Loading…
↗
4
9011910009
U(30.3")
Bolt, with washer
Loading…
↗
4
9011910060
E(35.3")
Bolt, with washer
Loading…
↗
5
97E7510570
X(25.3")
Bolt, hexagon w/w deep recess
Loading…
↗
5
9011910008
U(30.3")
Bolt, with washer
Loading…
↗
5
9011910061
E(35.3")
Bolt, with washer
Loading…
↗
6
6CE4521110CE
U(30.3")
Extension
Loading…
↗
7
63P4537800
E(35.3")
Nipple, hose
Loading…
↗
8
9321007003
U(30.3")
O-ring (11m)
Loading…
↗
9
6AW4436600
U(30.3")
Damper, water seal 2
Loading…
↗
10
9360816M16
U(30.3")
Pin, dowel(6t4)
Loading…
↗
11
6CE4436200
U(30.3"),E(35.3")
Tube, water 2
Loading…
↗
12
6AW4436500
U(30.3"),E(35.3")
Damper, water seal 1
Loading…
↗
13
6AW4431200
U(30.3"),E(35.3")
Cover, water pump housing
Loading…
↗
14
6AW4436300
U(30.3")
Tube, water 3
Loading…
↗
14
6CE4436300
E(35.3")
Tube, water 3
Loading…
↗
15
6AW4337600
E(35.3")
Bolt, thrust receiver
Loading…
↗
16
9578010300
E(35.3")
Nut, nylon (6e5)
Loading…
↗
