DEDHD (2013)
OUTBOARD DRIVE 1

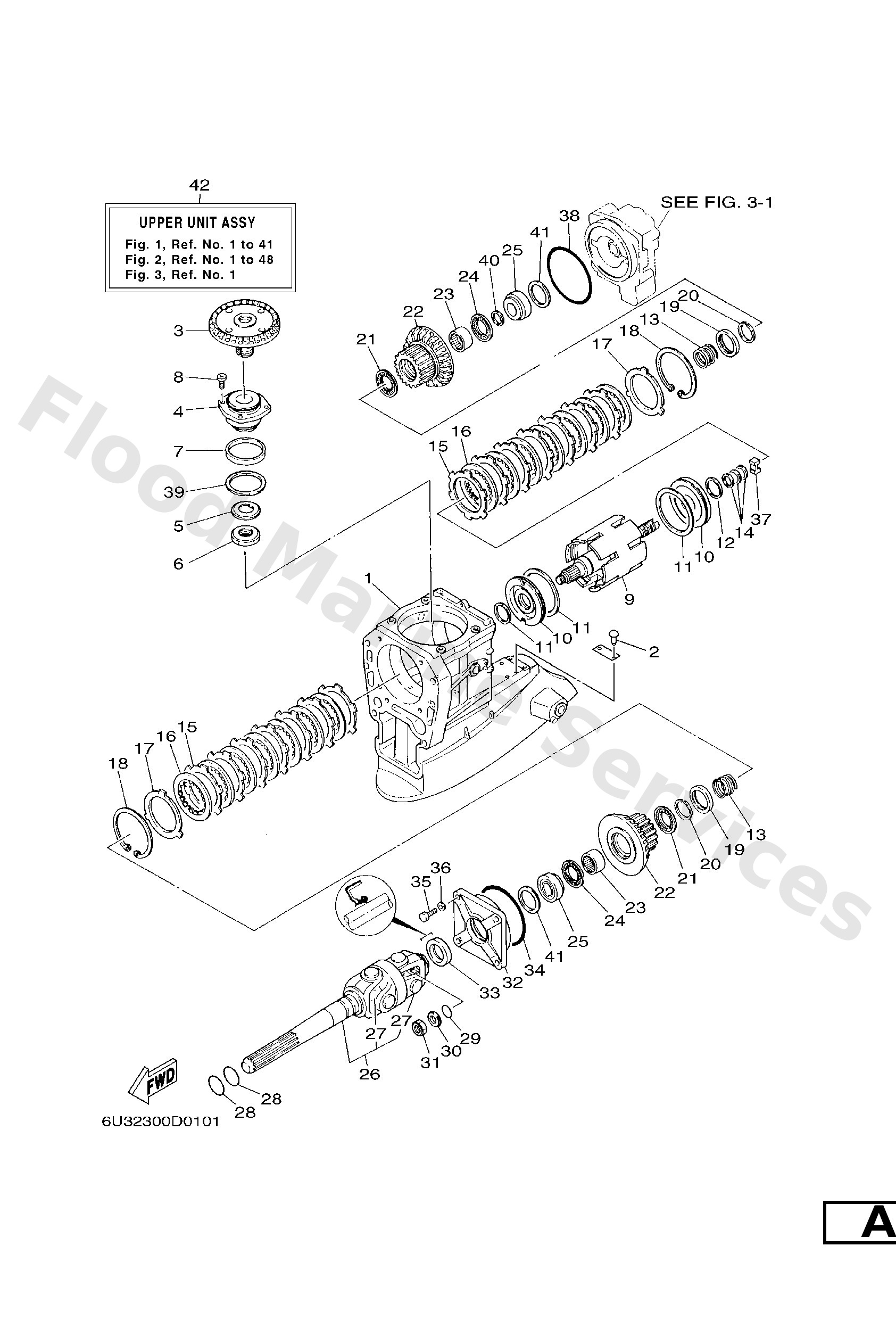

Diagram: OUTBOARD DRIVE 1
Parts List
Reference
Description
Price
2
9026902M08
Rivet(6l4)
Loading…
↗
3
6U34588E00
Gear 2
Loading…
↗
4
93399999U2
Bearing(6u1)
Loading…
↗
5
9021430M06
Washer, claw(6u1)
Loading…
↗
6
9017030M18
Nut(6t5)
Loading…
↗
7
6U14553900
Spacer 2
Loading…
↗
8
9201706016
Bolt, button head
Loading…
↗
9
6U14550110
Drive shaft comp.
Loading…
↗
10
6U11631900
Piston,clutch
Loading…
↗
11
6U31639300
Ring,square 1
Loading…
↗
12
6U11639400
Ring,square2
Loading…
↗
13
6U11633300
Spring, clutch 1
Loading…
↗
14
71318219A0
Ring, oil seal
Loading…
↗
15
6U11632400
Plate, clutch 1
Loading…
↗
16
6U11632100
Plate, friction
Loading…
↗
17
6U11632900
Plate,back 1
Loading…
↗
18
9900995500
Circlip(6u3)
Loading…
↗
19
6U14556600
Washer, thrust1
Loading…
↗
20
9344035M06
Circlip(6u1)
Loading…
↗
21
93340235U0
Bearing, thrust(6u1)
Loading…
↗
22
6U34588100
Gear 1
Loading…
↗
23
93310235U0
Bearing, cylindrical(6u3)
Loading…
↗
25
93332000U8
Brg.tapered roller (6f2)
Loading…
↗
26
6U145860A0
Universal joint assembly
Loading…
↗
27
6U145864A0
Spider bearing comp.
Loading…
↗
28
9321022M93
O-ring(6t5)
Loading…
↗
29
9321022MF1
O-ring(6u1)
Loading…
↗
30
9020916M22
Washer(6u1)
Loading…
↗
31
9017016M27
Nut(6u1)
Loading…
↗
33
9310238M39
Oil seal(6u1)
Loading…
↗
34
9321109MF2
O-ring(6u1)
Loading…
↗
35
9702710030
Bolt, hexagon
Loading…
↗
36
9290710600
Washer(6ta)
Loading…
↗
37
6U11313200
Joint
Loading…
↗
39
6T54588510
UN
Shim (t:0.12mm)
Loading…
↗
39
6T54588520
UN
Shim (t:0.15mm)
Loading…
↗
39
6T54588530
UN
Shim (t:0.18mm)
Loading…
↗
39
6T54588540
UN
Shim (t:0.30mm)
Loading…
↗
39
6T54588550
UN
Shim (t:0.40mm)
Loading…
↗
39
6T54588560
UN
Shim (t:0.50mm)
Loading…
↗
39
6T54588500
UN
Shim (t:0.10mm)
Loading…
↗
40
6U14588440
UN
Shim (t:1.85mm)
Loading…
↗
40
6U14588480
UN
Shim (t:2.05mm)
Loading…
↗
40
6U14588470
UN
Shim (t:2.00mm)
Loading…
↗
40
6U14588460
UN
Shim (t:1.95mm)
Loading…
↗
40
6U14588450
UN
Shim (t:1.90mm)
Loading…
↗
40
6U14588430
UN
Shim (t:1.80mm)
Loading…
↗
40
6U14588420
UN
Shim (t:1.75mm)
Loading…
↗
40
6U14588410
UN
Shim (t:1.70mm)
Loading…
↗
40
6U14588400
UN
Shim (t:1.65mm)
Loading…
↗
40
6U145884A0
UN
Shim (t:2.15mm)
Loading…
↗
40
6U145884K0
UN
Shim (t:2.60mm)
Loading…
↗
40
6U145884J0
UN
Shim (t:2.55mm)
Loading…
↗
40
6U145884H0
UN
Shim (t:2.50mm)
Loading…
↗
40
6U145884G0
UN
Shim (t:2.45mm)
Loading…
↗
40
6U145884F0
UN
Shim (t:2.40mm)
Loading…
↗
40
6U145884E0
UN
Shim (t:2.35mm)
Loading…
↗
40
6U145884D0
UN
Shim (t:2.30mm)
Loading…
↗
40
6U145884C0
UN
Shim (t:2.25mm)
Loading…
↗
40
6U145884B0
UN
Shim (t:2.20mm)
Loading…
↗
40
6U14588490
UN
Shim (t:2.10mm)
Loading…
↗
41
6T54558700
UN
Shim (t:0.10mm)
Loading…
↗
41
6T54558710
UN
Shim (t:0.12mm)
Loading…
↗
41
6T54558720
UN
Shim (t:0.15mm)
Loading…
↗
41
6T54558730
UN
Shim (t:0.18mm)
Loading…
↗
41
6T54558740
UN
Shim (t:0.30mm)
Loading…
↗
41
6T54558750
UN
Shim (t:0.40mm)
Loading…
↗
41
6T54558760
UN
Shim (t:0.50mm)
Loading…
↗
42
6U34500000
Drive unit assembly
Loading…
↗
