DEDHTD (2014)
OUTBOARD DRIVE 1

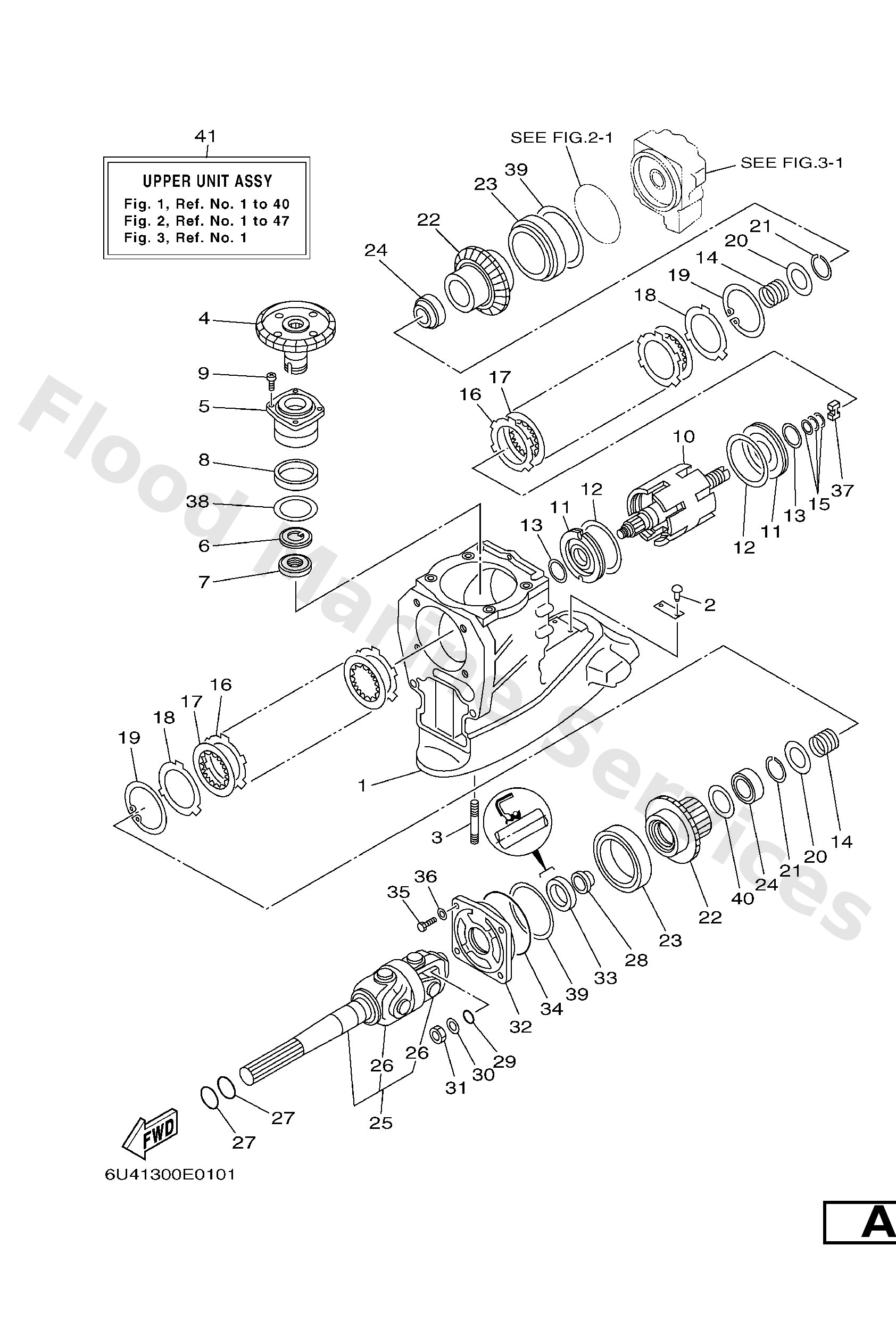

Diagram: OUTBOARD DRIVE 1
Parts List
Reference
Description
Price
2
9026902M08
Rivet(6l4)
Loading…
↗
3
9011610M48
Bolt, stud(6u1)
Loading…
↗
4
6U44588E00
Gear 2
Loading…
↗
5
9339999958
Bearing
Loading…
↗
6
9021435M07
Washer, claw
Loading…
↗
7
9017035M34
Nut
Loading…
↗
8
6U14553900
Spacer 2
Loading…
↗
9
9201706016
Bolt, button head
Loading…
↗
10
6U44550100
Drive shaft comp.
Loading…
↗
11
6U41631900
Piston, clutch
Loading…
↗
12
6U31639300
Ring,square 1
Loading…
↗
13
6U11639400
Ring,square2
Loading…
↗
14
6U41633300
Spring, clutch 1
Loading…
↗
15
71318219A0
Ring, oil seal
Loading…
↗
16
6U11632400
Plate, clutch 1
Loading…
↗
17
6U11632100
Plate, friction
Loading…
↗
18
6U11632900
Plate,back 1
Loading…
↗
19
9900995500
Circlip(6u3)
Loading…
↗
20
9020135M00
Washer, plate
Loading…
↗
21
9344035M06
Circlip(6u1)
Loading…
↗
22
6U44588000
Gear set
Loading…
↗
23
93332000W8
Bearing
Loading…
↗
24
93332000W9
Bearing
Loading…
↗
25
6U145860A0
Universal joint assembly
Loading…
↗
26
6U145864A0
Spider bearing comp.
Loading…
↗
27
9321022M93
O-ring(6t5)
Loading…
↗
28
6U44552600
Collar, drive shaf
Loading…
↗
29
9321022MF1
O-ring(6u1)
Loading…
↗
30
9020916M22
Washer(6u1)
Loading…
↗
31
9017016M27
Nut(6u1)
Loading…
↗
32
6U4458710094
Housing, bearing
Loading…
↗
33
9310238M39
Oil seal(6u1)
Loading…
↗
34
9321109MF2
O-ring(6u1)
Loading…
↗
35
9702710030
Bolt, hexagon
Loading…
↗
36
9290710600
Washer(6ta)
Loading…
↗
37
6U11313200
Joint
Loading…
↗
38
6T54588520
UR
Shim (t:0.15mm)
Loading…
↗
38
6T54588560
UR
Shim (t:0.50mm)
Loading…
↗
38
6T54588550
UR
Shim (t:0.40mm)
Loading…
↗
38
6T54588540
UR
Shim (t:0.30mm)
Loading…
↗
38
6T54588530
UR
Shim (t:0.18mm)
Loading…
↗
38
6T54588510
UR
Shim (t:0.12mm)
Loading…
↗
38
6T54588500
UR
Shim (t:0.10mm)
Loading…
↗
39
6U44558710
UR
Shim (t:0.12mm)
Loading…
↗
39
6U44558760
UR
Shim (t:0.50mm)
Loading…
↗
39
6U44558750
UR
Shim (t:0.40mm)
Loading…
↗
39
6U44558740
UR
Shim (t:0.30mm)
Loading…
↗
39
6U44558730
UR
Shim (t:0.18mm)
Loading…
↗
39
6U44558720
UR
Shim (t:0.15mm)
Loading…
↗
39
6U44558700
UR
Shim (t:0.10mm)
Loading…
↗
40
6J84556701
UR
Shim (t:0.10mm)
Loading…
↗
40
6J84556710
UR
Shim (t:0.12mm)
Loading…
↗
40
6J84556720
UR
Shim, thrust (0.15t)
Loading…
↗
40
6J84556730
UR
Shim (t:0.18mm)
Loading…
↗
40
6J84556740
UR
Shim, thrust (0.3t)
Loading…
↗
40
6J84556750
UR
Shim, thrust (0.4t)
Loading…
↗
40
6J84556760
UR
Shim, thrust (0.5t)
Loading…
↗
41
6U44500000
Upper unit assembly
Loading…
↗
