ME750TIH (2005)
OUTPUT SHAFT (MGNV123-6)

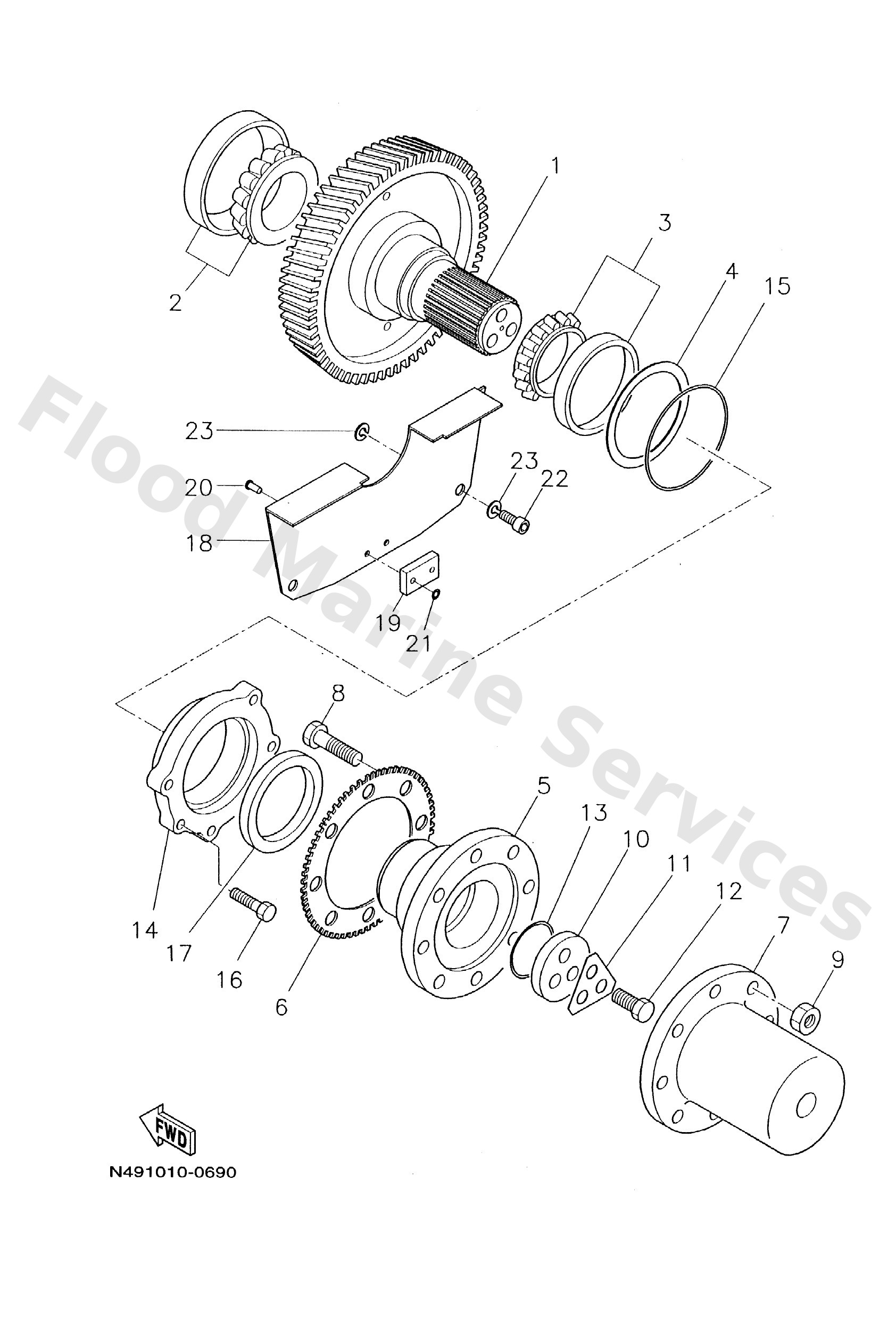

Diagram: OUTPUT SHAFT (MGNV123-6)
Parts List
Reference
Description
Price
1
N4917270C0
UR R=2.46
Reduction Gear assembly (64T)
Loading…
↗
1
N4917270D0
UR R=2.03
Reduction Gear assembly (77T)
Loading…
↗
1
N4917270E0
UR R=1.53
Reduction Gear assembly (69T)
Loading…
↗
1
N4917270B0
UR R=2.96
Reduction Gear assembly (68T)
Loading…
↗
2
N0215693N0
Bearing
Loading…
↗
3
9333200075
Bearing(n21)
Loading…
↗
4
N0217837N0
Shim
Loading…
↗
5
N4945593B0
Flange, Coupling 1
Loading…
↗
6
N4911953B0
Gear, Governor
Loading…
↗
7
N4945594B0
Flange, Coupling 2
Loading…
↗
8
N4912615B0
Bolt
Loading…
↗
9
N4915798B0
Nut
Loading…
↗
10
7281766500
Plate 1
Loading…
↗
11
N4917059B0
Washer,2
Loading…
↗
12
N4912228B0
Bolt
Loading…
↗
13
7281347300
O-Ring
Loading…
↗
14
N4916755B0
Hsg., Oil Seal
Loading…
↗
15
7281243900
O-Ring
Loading…
↗
16
N1512157N0
Bolt
Loading…
↗
17
71E1537900
Seal, oil
Loading…
↗
18
N4977111B0
Shroud
Loading…
↗
19
N411341900
Magnet
Loading…
↗
20
9024106M00
Pin with head (663)
Loading…
↗
21
9018306011
Nut, spring(ja3)
Loading…
↗
22
N4914777B0
54-
Loading…
↗
23
9020110123
Washer, plain 2562171501
Loading…
↗
