F50AE (2000)
Oil Pan

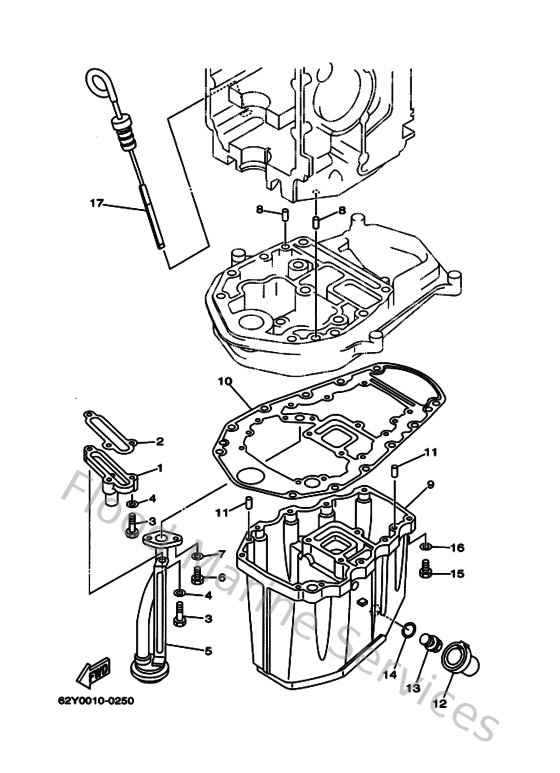

Diagram: Oil Pan
Parts List
Reference
Description
Price
1
62Y115750000
Relief valve ass'y
Loading…
↗
2
62Y134750000
Gasket
Loading…
↗
3
970130602500
Bolt(62y)
Loading…
↗
4
929030660000
Washer, plain (646)
Loading…
↗
5
62Y134110000
Strainer, oil
Loading…
↗
6
970140601600
Bolt, hexagon deep recess
Loading…
↗
8
9360812M0500
Pin, dowel b (6e5)
Loading…
↗
9
62Y1531102CA
Oil pan
Loading…
↗
10
62Y153120000
Gasket, oil pan
Loading…
↗
11
936061201900
Pin, dowel (614)
Loading…
↗
12
62Y153160000
Damper 1
Loading…
↗
13
9034014M0600
Plug, straight screw(62y)
Loading…
↗
14
904301422800
Gasket(n261)
Loading…
↗
15
970750602500
Bolt
Loading…
↗
16
929950660000
Washer, plain (646)
Loading…
↗
17
62Y153620000
Plug, oil level
Loading…
↗
