30DMH (1987)
Oil Pump

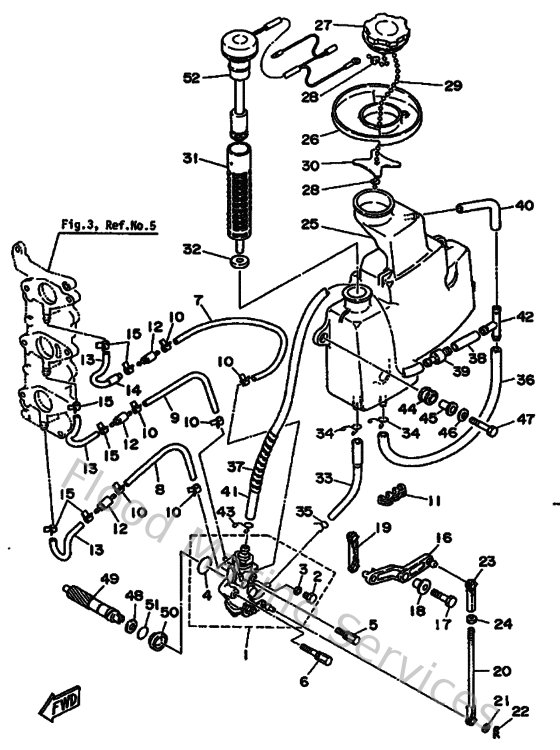

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
6J8132000000
Oil injection pump assembly
Loading…
↗
2
6J8134710000
Plug, Drain
Loading…
↗
3
6J8134750000
Gasket
Loading…
↗
4
9321019M8200
O-ring(6j8)
Loading…
↗
5
9010905M3200
Bolt
Loading…
↗
6
9010905M3300
Bolt
Loading…
↗
7
9044507M0800
Hose (l390)
Loading…
↗
8
9044507MA300
Hose (l200)
Loading…
↗
9
9044507M5100
Hose (l200)
Loading…
↗
10
9046807M0200
Clip (6e5)
Loading…
↗
11
9046407M0500
Clamp (6g5)
Loading…
↗
12
6J8131830000
Valve check
Loading…
↗
13
9044607M4800
Hose(62t)
Loading…
↗
14
9044511M0800
Hose (l70)
Loading…
↗
16
6J8131550000
Lever, control
Loading…
↗
17
973130602500
Bolt
Loading…
↗
18
9038706M6000
Collar (6h3)
Loading…
↗
19
6J8412380000
Joint, link
Loading…
↗
20
6J8412370000
Joint, link
Loading…
↗
21
902020508800
Washer, plate (666)
Loading…
↗
22
9046805M0300
Clip(6j8)
Loading…
↗
23
682412370000
Joint, link 2
Loading…
↗
24
953030570000
Nut (656)
Loading…
↗
25
6J8217070100
Oil tank comp.
Loading…
↗
27
6H4217700000
Oil tank cap assembly
Loading…
↗
28
6H1217570000
Washer, special 1
Loading…
↗
30
6J8217580000
Washer, special 2
Loading…
↗
31
6J8134110000
Strainer, oil
Loading…
↗
32
6J8134140000
Gasket, strainer cover
Loading…
↗
33
6J8134160000
Pipe, oil 1
Loading…
↗
34
9046711M0800
Clip(72x)
Loading…
↗
35
904670800400
Clip, pipe 6162435600
Loading…
↗
36
9044511M0300
Hose (l360)
Loading…
↗
38
9044511M0700
Hose (l70)
Loading…
↗
39
6J8217440000
Breather
Loading…
↗
40
9044511M0200
Hose (l100)
Loading…
↗
41
9044511M0900
Hose (l600)
Loading…
↗
42
6E5243780000
Pipe, joint 3
Loading…
↗
43
9046710M0400
Clip, pipe 1 (6e9)
Loading…
↗
44
6A0823170000
Damper, ignition coil
Loading…
↗
45
624425420000
Collar
Loading…
↗
46
902010605000
Washer, plate(6e3)
Loading…
↗
47
970800603000
Bolt(jf7)
Loading…
↗
48
9020108M9300
Washer, plate (6g5)
Loading…
↗
49
6J8115370000
Gear, driven
Loading…
↗
50
6J8131170000
Collar, distance
Loading…
↗
51
9321013M0400
93210-13m04
Loading…
↗
52
6J8857200000
Oil level gauge assembly
Loading…
↗
