40HM (1987)
Oil Pump

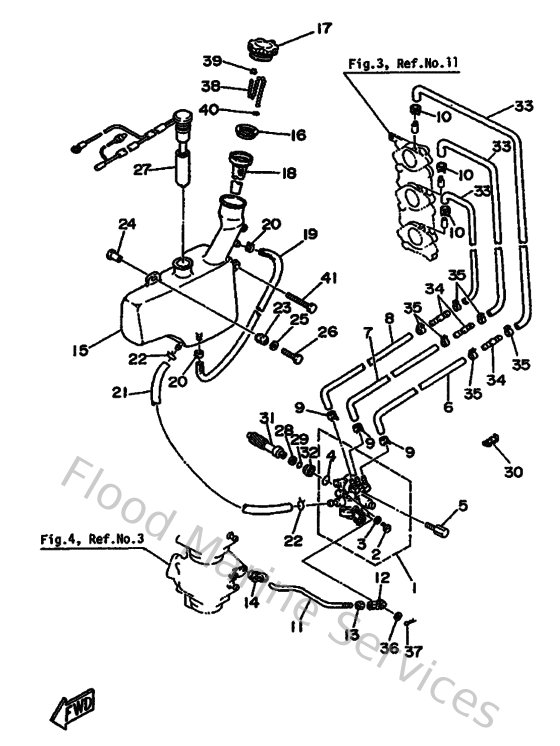

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
6H4132000100
Oil Injection Pump Set
Loading…
↗
2
6E5134710000
Plug, Drain
Loading…
↗
3
6E5134750000
Washer
Loading…
↗
5
9010906M2200
Bolt
Loading…
↗
6
9044507M4400
Hose (l390)
Loading…
↗
7
9044507M2300
Hose (l570)
Loading…
↗
8
9044507MA600
Hose (l200)
Loading…
↗
9
9046807M0200
Clip (6e5)
Loading…
↗
12
6H1412370000
Joint, link
Loading…
↗
13
953030560000
Nut, hexagon (663)
Loading…
↗
14
6E9412370000
Joint, link
Loading…
↗
15
6H4217071100
Oil Tank
Loading…
↗
16
6H4217730000
Grommet
Loading…
↗
17
6H4217700000
Oil tank cap assembly
Loading…
↗
19
9044609M0800
Hose
Loading…
↗
20
904670800400
Clip, pipe 6162435600
Loading…
↗
21
90445090F600
Hose (l1500)
Loading…
↗
23
6A0823170000
Damper, ignition coil
Loading…
↗
24
624425420000
Collar
Loading…
↗
25
902010605000
Washer, plate(6e3)
Loading…
↗
26
970800603000
Bolt(jf7)
Loading…
↗
28
9020108M9300
Washer, plate (6g5)
Loading…
↗
29
9321013M0400
93210-13m04
Loading…
↗
30
9046407M0500
Clamp (6g5)
Loading…
↗
31
6H4115370100
Gear, driven
Loading…
↗
32
6H1131170000
Collar, distance
Loading…
↗
33
9044507M8700
Hose(62t)
Loading…
↗
34
6E5131320000
Joint
Loading…
↗
36
902020508800
Washer, plate (666)
Loading…
↗
37
9046805M0300
Clip(6j8)
Loading…
↗
38
6H4246330000
Chain, ball
Loading…
↗
39
6H4246340000
Hook, chain ball
Loading…
↗
40
6H4217570000
Washer, special 1
Loading…
↗
41
973130605000
Bolt, hexagon
Loading…
↗
6
9044507M9000
Hose (l390)
Loading…
↗
16
6H4217350100
Seal 2
Loading…
↗
17
6H1217441000
Breather
Loading…
↗
18
6H1217730000
Grommet
Loading…
↗
19
6H1217710100
Body, cap
Loading…
↗
20
6H1217720100
Gasket, cap
Loading…
↗
22
6H1217570000
Washer, special 1
Loading…
↗
23
6H1246340000
Hook, chain ball
Loading…
↗
24
6H1242510100
Strainer 1
Loading…
↗
25
9050114M4500
Spring, Compression
Loading…
↗
33
6H4843010100
Pilot Light Assembly 1
Loading…
↗
34
6H4835890000
Gasket
Loading…
↗
35
978030601400
Screw, pan
Loading…
↗
36
929030660000
Washer, plain (646)
Loading…
↗
38
904651814700
Clamp
Loading…
↗
42
6H4115370000
Gear, driven
Loading…
↗
43
6H1131170100
Collar, distance
Loading…
↗
47
9038603M5900
Bush, Specl Nylon
Loading…
↗
