40HM (1989)
Oil Pump

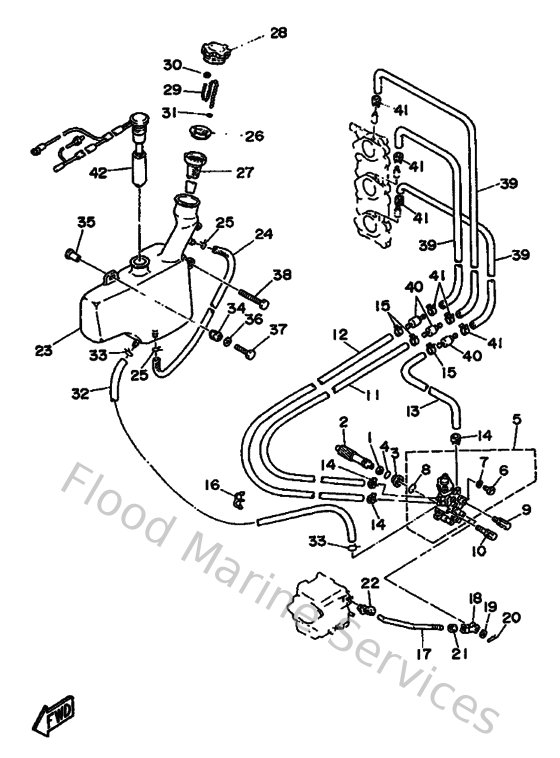

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
9020108M9300
Washer, plate (6g5)
Loading…
↗
2
6H4115370000
Gear, driven
Loading…
↗
3
6H1131170000
Collar, distance
Loading…
↗
4
932101359500
93210-13m04
Loading…
↗
6
6H1134710000
Plug, Drain
Loading…
↗
7
1YU131870000
Gasket, breather bolt
Loading…
↗
8
9321019M8200
O-ring(6j8)
Loading…
↗
9
9010906M3900
Bolt(6h0)
Loading…
↗
10
9010906M4000
Bolt(6h0)
Loading…
↗
11
9044507M4400
Hose (l390)
Loading…
↗
12
9044507MF100
Hose (l570)
Loading…
↗
13
9044507MA600
Hose (l200)
Loading…
↗
14
9046807M0200
Clip (6e5)
Loading…
↗
16
9046407M2000
Clamp(6h0)
Loading…
↗
17
6H4412410100
Rod, link
Loading…
↗
18
6H1412370000
Joint, link
Loading…
↗
19
902020508800
Washer, plate (666)
Loading…
↗
20
9046805M0300
Clip(6j8)
Loading…
↗
21
953030560000
Nut, hexagon (663)
Loading…
↗
22
6R5412370000
Joint, link
Loading…
↗
23
6H4217071000
Oil Tank Comp
Loading…
↗
24
9044609M0800
Hose
Loading…
↗
25
904670800400
Clip, pipe 6162435600
Loading…
↗
26
6H4217730000
Grommet
Loading…
↗
28
6H4217700000
Oil tank cap assembly
Loading…
↗
29
6H4246330100
Chain, ball
Loading…
↗
30
6H4246340000
Hook, chain ball
Loading…
↗
31
6H4217570000
Washer, special 1
Loading…
↗
32
9044509M3700
Hose (l1500)
Loading…
↗
34
6A0823170000
Damper, ignition coil
Loading…
↗
35
624425420000
Collar
Loading…
↗
36
902010605000
Washer, plate(6e3)
Loading…
↗
37
970800603000
Bolt(jf7)
Loading…
↗
38
973130605000
Bolt, hexagon
Loading…
↗
39
9044507M8700
Hose(62t)
Loading…
↗
40
6E5131320000
Joint
Loading…
↗
