50DEMTO (1987)
Oil Pump

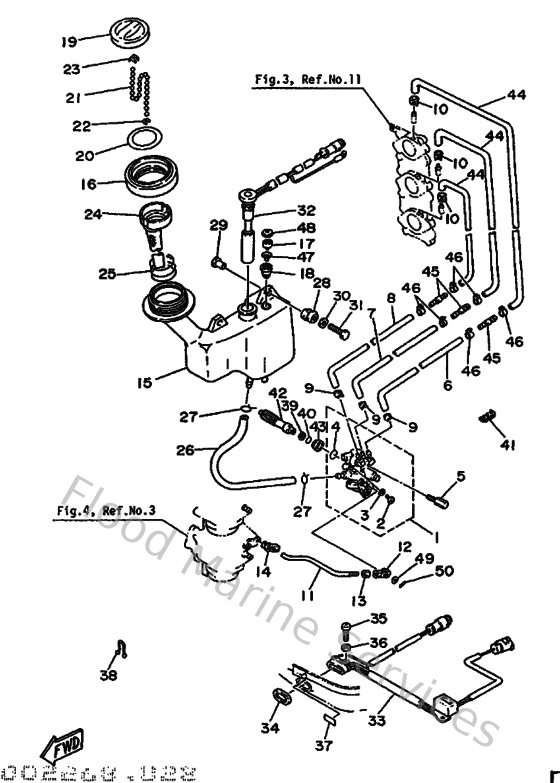

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
6H4132000100
Oil Injection Pump Set
Loading…
↗
2
6E5134710000
Plug, Drain
Loading…
↗
3
6E5134750000
Washer
Loading…
↗
12
6H1412370000
Joint, link
Loading…
↗
14
6E9412370000
Joint, link
Loading…
↗
16
6H4217350100
Seal 2
Loading…
↗
17
6H1217441000
Breather
Loading…
↗
18
6H1217730000
Grommet
Loading…
↗
19
6H1217710100
Body, cap
Loading…
↗
20
6H1217720100
Gasket, cap
Loading…
↗
22
6H1217570000
Washer, special 1
Loading…
↗
23
6H1246340000
Hook, chain ball
Loading…
↗
24
6H1242510100
Strainer 1
Loading…
↗
28
6A0823170000
Damper, ignition coil
Loading…
↗
29
624425420000
Collar
Loading…
↗
33
6H4843010100
Pilot Light Assembly 1
Loading…
↗
34
6H4835890000
Gasket
Loading…
↗
42
6H4115370000
Gear, driven
Loading…
↗
43
6H1131170000
Collar, distance
Loading…
↗
45
6E5131320000
Joint
Loading…
↗
15
6H4217071000
Oil Tank Comp
Loading…
↗
16
6H4217730000
Grommet
Loading…
↗
17
6H4217700000
Oil tank cap assembly
Loading…
↗
32
6H1131170100
Collar, distance
Loading…
↗
38
6H4246330000
Chain, ball
Loading…
↗
39
6H4246340000
Hook, chain ball
Loading…
↗
40
6H4217570000
Washer, special 1
Loading…
↗
