70BETO (1988)
Oil Pump

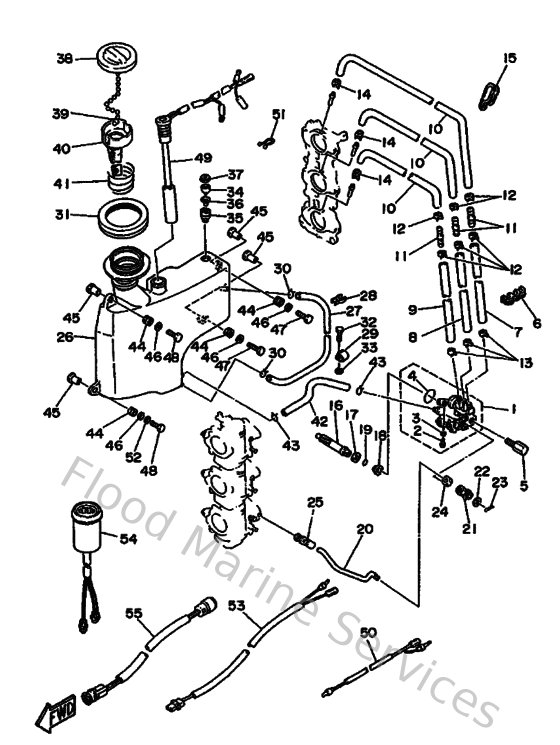

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
6H1132000100
Oil injection pump set
Loading…
↗
2
6E5134710000
Plug, Drain
Loading…
↗
3
6E5134750000
Washer
Loading…
↗
5
9010906M2200
Bolt
Loading…
↗
6
9046407M0500
Clamp (6g5)
Loading…
↗
7
9044507M9000
Hose (l390)
Loading…
↗
8
9044507M2300
Hose (l570)
Loading…
↗
9
9044507MA500
Hose (l200)
Loading…
↗
10
9044507M8700
Hose(62t)
Loading…
↗
11
6E5131320000
Joint
Loading…
↗
12
9046807M0200
Clip (6e5)
Loading…
↗
15
9046508M2300
Clamp (6h3)
Loading…
↗
16
6H3115370000
Gear, driven
Loading…
↗
18
6H1131170100
Collar, distance
Loading…
↗
19
932101359500
93210-13m04
Loading…
↗
21
6H1412370000
Joint, link
Loading…
↗
22
902020508800
Washer, plate (666)
Loading…
↗
23
9046805M0300
Clip(6j8)
Loading…
↗
24
953030560000
Nut, hexagon (663)
Loading…
↗
25
6R5412370000
Joint, link
Loading…
↗
27
9044511M1500
Hose (l360)
Loading…
↗
28
9046411M2400
Clamp(6h1)
Loading…
↗
29
9046511M2700
Clamp(6h1)
Loading…
↗
30
9046711M0800
Clip(72x)
Loading…
↗
31
6H1217350000
Seal 2
Loading…
↗
32
973130601600
Bolt, hexagon deep recess
Loading…
↗
33
9038706M3100
Coller (6a0)
Loading…
↗
34
6H1217441000
Breather
Loading…
↗
35
6H1217730000
Grommet
Loading…
↗
36
9038603M5900
Bush, Specl Nylon
Loading…
↗
38
6H1217700000
Oil Tank Cap Assembly
Loading…
↗
39
6H1217570000
Washer, special 1
Loading…
↗
40
6H1242510100
Strainer 1
Loading…
↗
41
9050114M4500
Spring, Compression
Loading…
↗
42
6H3217660000
Pipe, Oil
Loading…
↗
43
904670800400
Clip, pipe 6162435600
Loading…
↗
44
6A0823170000
Damper, ignition coil
Loading…
↗
45
624425420000
Collar
Loading…
↗
46
902010605000
Washer, plate(6e3)
Loading…
↗
47
970800603000
Bolt(jf7)
Loading…
↗
48
973130602500
Bolt
Loading…
↗
49
6H3857201200
Oil Level Gauge assembly
Loading…
↗
50
6H3813150000
Lead Wire Assembly
Loading…
↗
51
904651814700
Clamp
Loading…
↗
52
929900660000
Washer, plain (646)
Loading…
↗
55
6H1843481200
Wire Lead 1
Loading…
↗
