70BETO (1990)
Oil Pump

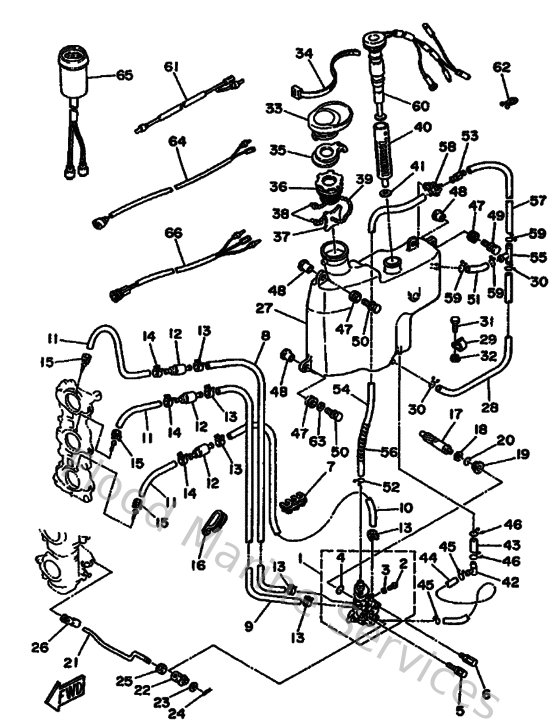

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
6H3132000100
Oil injection pump assembly
Loading…
↗
2
6H1134710000
Plug, Drain
Loading…
↗
4
9321019M8200
O-ring(6j8)
Loading…
↗
5
9010906M3900
Bolt(6h0)
Loading…
↗
6
9010906M4000
Bolt(6h0)
Loading…
↗
7
9046407M0500
Clamp (6g5)
Loading…
↗
8
9044507MA400
Hose (l390)
Loading…
↗
9
9044507MF100
Hose (l570)
Loading…
↗
10
9044507MA500
Hose (l200)
Loading…
↗
11
9044507M8700
Hose(62t)
Loading…
↗
12
6E9131837000
Valve check
Loading…
↗
13
9046807M0200
Clip (6e5)
Loading…
↗
16
9046508M2300
Clamp (6h3)
Loading…
↗
17
6H3115370100
Gear, driven
Loading…
↗
18
9020108M9300
Washer, plate (6g5)
Loading…
↗
19
6H1131170000
Collar, distance
Loading…
↗
20
932101359500
93210-13m04
Loading…
↗
21
6H3412410100
Rod, link
Loading…
↗
22
6H1412370000
Joint, link
Loading…
↗
23
902020508800
Washer, plate (666)
Loading…
↗
24
9046805M0300
Clip(6j8)
Loading…
↗
25
953800560000
Nut, hexagon (663)
Loading…
↗
26
6E9412370000
Joint, link
Loading…
↗
27
6H3217070500
Oil tank comp.
Loading…
↗
28
9044511M0300
Hose (l360)
Loading…
↗
29
9046511M2700
Clamp(6h1)
Loading…
↗
30
9046711M0800
Clip(72x)
Loading…
↗
31
970950601600
Bolt, hexagon deep recess
Loading…
↗
32
9038706M3100
Coller (6a0)
Loading…
↗
33
6H3217520000
Tube, filler 1
Loading…
↗
34
9046513M3000
Clamp
Loading…
↗
35
6H12176M0100
Hook
Loading…
↗
38
6H1217570000
Washer, special 1
Loading…
↗
40
6J8134110000
Strainer, oil
Loading…
↗
41
6J8134140000
Gasket, strainer cover
Loading…
↗
42
6H1134350000
Nipple
Loading…
↗
43
9044513M1800
Hose (L200)
Loading…
↗
44
6H1217660100
Pipe, oil
Loading…
↗
45
904670800400
Clip, pipe 6162435600
Loading…
↗
46
9046712M1100
Clip(6k8)
Loading…
↗
47
6A0823170000
Damper, ignition coil
Loading…
↗
48
903870611900
Collar
Loading…
↗
49
9011906M6500
Bolt, with washer
Loading…
↗
50
9011906M8800
Bolt, with washer
Loading…
↗
51
9044511M2100
Hose (l70)
Loading…
↗
52
9046710M0400
Clip, pipe 1 (6e9)
Loading…
↗
53
63D217440000
Breather
Loading…
↗
54
9044511M1500
Hose (l360)
Loading…
↗
55
6E5243780000
Pipe, joint 3
Loading…
↗
56
9044610M0100
Tube (6e5)
Loading…
↗
57
9044510MA900
Hose (l1040)
Loading…
↗
58
9046411M2300
Clamp(6h4)
Loading…
↗
60
6H3857201300
Oil Lvl Gauge Assembly
Loading…
↗
61
6H3813150000
Lead Wire Assembly
Loading…
↗
62
904651814700
Clamp
Loading…
↗
63
929900660000
Washer, plain (646)
Loading…
↗
66
6H1843481200
Wire Lead 1
Loading…
↗
