70BETO (2001)
Oil Pump

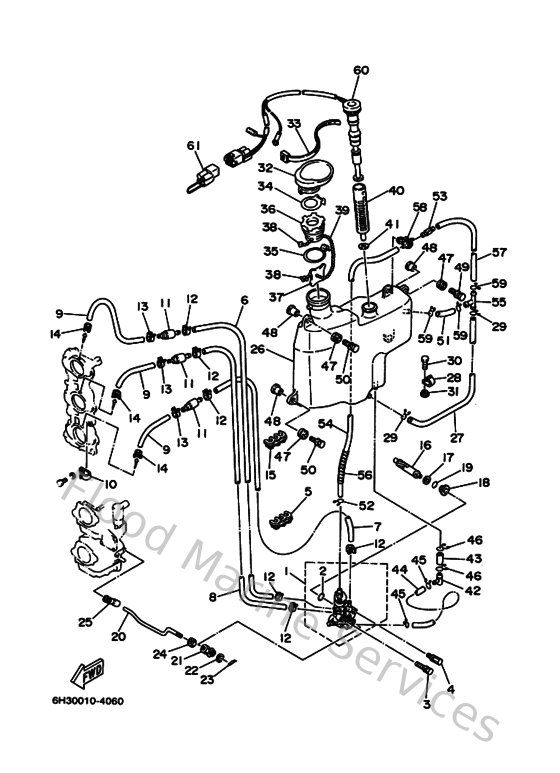

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
6H3132000200
Oil injection pump assembly
Loading…
↗
2
9321019MA700
O-ring(6r0)
Loading…
↗
3
9010906M3900
Bolt(6h0)
Loading…
↗
4
9010906M4000
Bolt(6h0)
Loading…
↗
5
9046407M0500
Clamp (6g5)
Loading…
↗
6
9044507M9000
Hose (l390)
Loading…
↗
7
9044507M2300
Hose (l570)
Loading…
↗
8
9044507MA300
Hose (l200)
Loading…
↗
9
9044507M8700
Hose(62t)
Loading…
↗
10
9046506M8600
Clamp
Loading…
↗
11
6E9131837000
Valve check
Loading…
↗
12
9046807M0200
Clip (6e5)
Loading…
↗
16
6H3115370100
Gear, driven
Loading…
↗
17
9020108M9300
Washer, plate (6g5)
Loading…
↗
18
6H1131170100
Collar, distance
Loading…
↗
19
9321013M0400
93210-13m04
Loading…
↗
20
6H3412410100
Rod, link
Loading…
↗
21
6H1412370000
Joint, link
Loading…
↗
22
902020508800
Washer, plate (666)
Loading…
↗
23
9046805M0300
Clip(6j8)
Loading…
↗
24
953800560000
Nut, hexagon (663)
Loading…
↗
25
6E9412370000
Joint, link
Loading…
↗
26
6H3217070600
Oil tank comp.
Loading…
↗
27
9044511M0300
Hose (l360)
Loading…
↗
28
9046511M2700
Clamp(6h1)
Loading…
↗
29
9046711M0800
Clip(72x)
Loading…
↗
30
970950601600
Bolt, hexagon deep recess
Loading…
↗
31
9038706M3100
Coller (6a0)
Loading…
↗
32
6H3217520000
Tube, filler 1
Loading…
↗
33
9046513M3000
Clamp
Loading…
↗
34
63D2176M0000
Hook
Loading…
↗
35
63D2175R0000
Hook, band
Loading…
↗
36
6H4217700000
Oil tank cap assembly
Loading…
↗
37
6J8217580000
Washer, special 2
Loading…
↗
38
6H1217570000
Washer, special 1
Loading…
↗
40
6J8134110000
Strainer, oil
Loading…
↗
41
6J8134140000
Gasket, strainer cover
Loading…
↗
42
6H1134350000
Nipple
Loading…
↗
43
9044508M0100
Hose (l30)
Loading…
↗
44
6H1217660100
Pipe, oil
Loading…
↗
45
904670800400
Clip, pipe 6162435600
Loading…
↗
46
9046712M1100
Clip(6k8)
Loading…
↗
47
6A0823170000
Damper, ignition coil
Loading…
↗
48
903870611900
Collar
Loading…
↗
49
9011906M6500
Bolt, with washer
Loading…
↗
50
9011906M8800
Bolt, with washer
Loading…
↗
51
9044511M2100
Hose (l70)
Loading…
↗
52
9046710M0400
Clip, pipe 1 (6e9)
Loading…
↗
53
6J8217440000
Breather
Loading…
↗
54
9044511M1500
Hose (l360)
Loading…
↗
55
6E5243780000
Pipe, joint 3
Loading…
↗
56
9044610M0100
Tube (6e5)
Loading…
↗
57
9044511M0200
Hose (l100)
Loading…
↗
58
9046411M2300
Clamp(6h4)
Loading…
↗
60
6H3857201600
Oil level gauge assembly
Loading…
↗
61
6R582582B000
Cover, wire harness
Loading…
↗
