D150HETO (1999)
Oil Pump

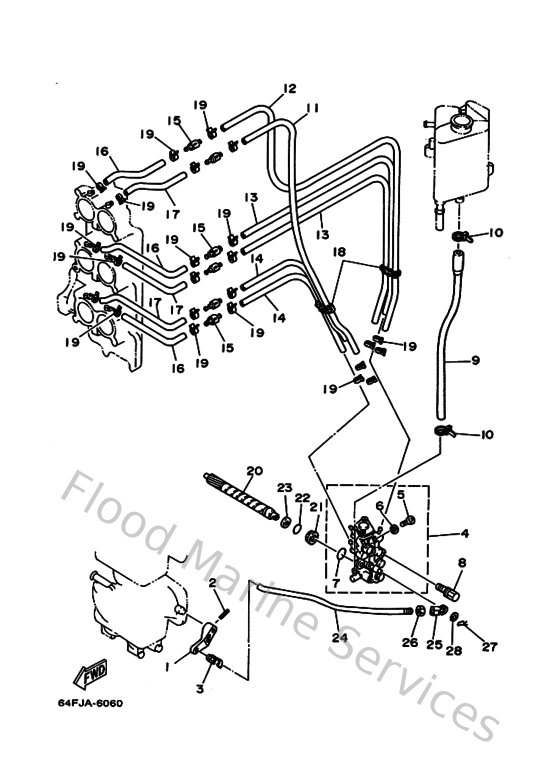

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
6E5142760100
Lever
Loading…
↗
2
916903001600
Pin, spring
Loading…
↗
3
6R5412370000
Joint, link
Loading…
↗
4
6R4132000000
Oil injection pump assembly
Loading…
↗
5
985800400600
Screw, pan head (7h3)
Loading…
↗
6
6L2134750000
Gasket, breather bolt
Loading…
↗
7
9321019MA700
O-ring(6r0)
Loading…
↗
8
9010906M4000
Bolt(6h0)
Loading…
↗
9
6R3134160000
Pipe, oil 1
Loading…
↗
10
9046511M1000
Clamp
Loading…
↗
11
9044507M9000
Hose (l390)
Loading…
↗
12
9044507M8500
Hose (l390)
Loading…
↗
14
904450719600
Hose (l200)
Loading…
↗
15
6R3131831000
Valve, check
Loading…
↗
16
9044607M4800
Hose(62t)
Loading…
↗
17
9044507M0700
Hose(62t)
Loading…
↗
18
9046407M0500
Clamp (6g5)
Loading…
↗
19
9046807M0200
Clip (6e5)
Loading…
↗
20
6R3115370000
Gear, driven
Loading…
↗
21
6R3131170000
Collar, distance
Loading…
↗
22
9321013M0400
93210-13m04
Loading…
↗
23
9020208M4400
Washer, plate(6r3)
Loading…
↗
24
6R5412410000
Rod, link
Loading…
↗
25
6H1412370000
Joint, link
Loading…
↗
26
953800560000
Nut, hexagon (663)
Loading…
↗
27
9046805M0300
Clip(6j8)
Loading…
↗
28
902020508800
Washer, plate (666)
Loading…
↗
