F15AEP (2001)
Oil Pump

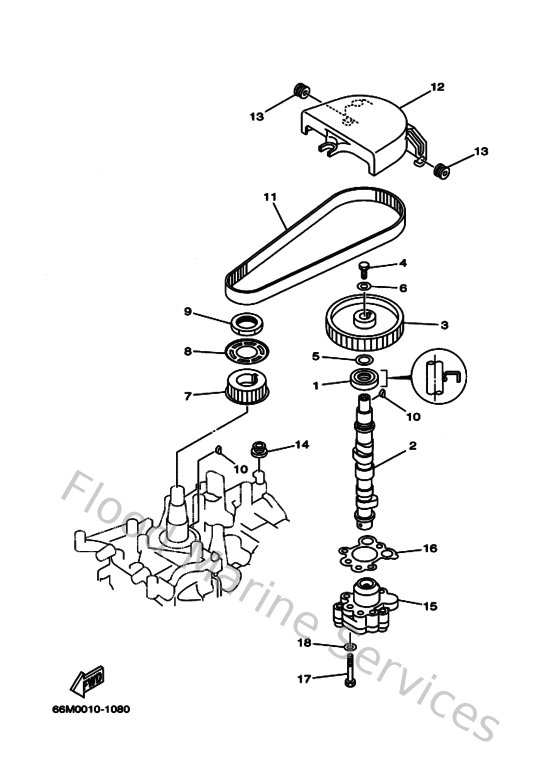

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
9310218M2100
Oil seal (6g8)
Loading…
↗
2
66M121711000
Camshaft 1
Loading…
↗
3
66M115370094
Gear, driven
Loading…
↗
4
970140601600
Bolt, hexagon deep recess
Loading…
↗
5
902011320100
Washer 6474283300
Loading…
↗
6
9020106M9400
Washer (6g8)
Loading…
↗
7
66M115361000
Gear, drive
Loading…
↗
8
66M115570000
Washer 1
Loading…
↗
9
9017028M3700
Nut
Loading…
↗
10
902800301700
Key woodruff 146115450000
Loading…
↗
11
66M462410000
Belt
Loading…
↗
12
66M462970000
Cover, dust
Loading…
↗
13
9048010M1600
Grommet(6j8)
Loading…
↗
14
904801207200
Grommet(53y)
Loading…
↗
15
66M133001000
Oil Pump assembly
Loading…
↗
16
66M133291000
Gasket, pump cover
Loading…
↗
17
970950603500
Bolt(j52)
Loading…
↗
18
929950660000
Washer, plain (646)
Loading…
↗
