F30AMS (2001)
Oil Pump

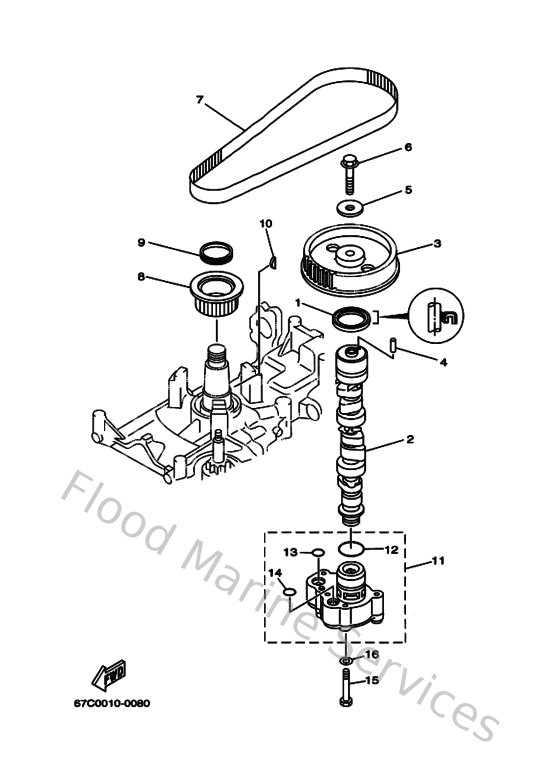

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
9310237M4000
Oil seal(62y)
Loading…
↗
2
67C121710000
Camshaft 1
Loading…
↗
3
67C115370100
Gear Driven
Loading…
↗
4
936051414300
Pin (2h7)
Loading…
↗
5
9020110M0600
Washer, plate(62y)
Loading…
↗
6
958951004000
Bolt, flange deep recess
Loading…
↗
7
65W462410000
Belt
Loading…
↗
8
65W115361000
Gear, drive
Loading…
↗
9
65W114760000
Spring
Loading…
↗
10
9028004M0600
Key, woodruff(6a1)
Loading…
↗
11
62Y133000000
Oil Pump assembly
Loading…
↗
12
9321033MH200
O-ring(62y)
Loading…
↗
13
9321012MG900
O-ring(62y)
Loading…
↗
14
932101451500
O-ring (11h)
Loading…
↗
15
970130604000
Bolt (682)
Loading…
↗
16
929030660000
Washer, plain (646)
Loading…
↗
