F50AE (1998)
Oil Pump

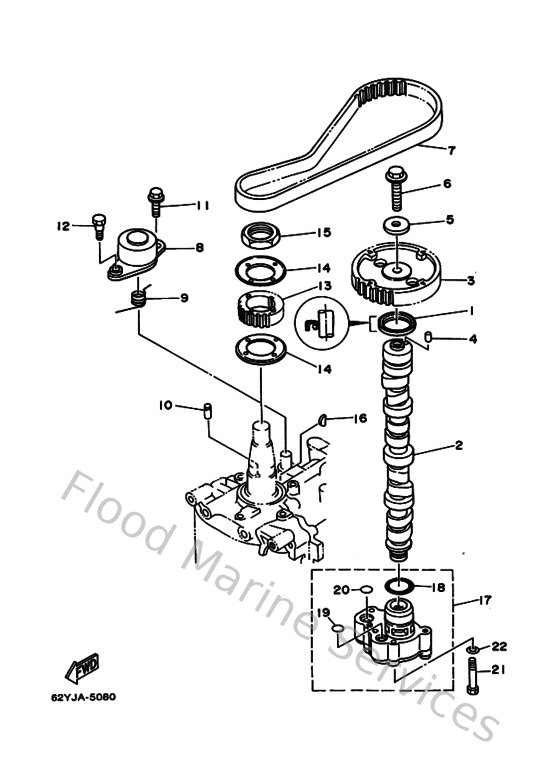

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
9310237M4000
Oil seal(62y)
Loading…
↗
2
62Y121710000
Camshaft 1
Loading…
↗
3
62Y115370000
Gear, driven
Loading…
↗
4
936051414300
Pin (2h7)
Loading…
↗
5
9020110M0600
Washer, plate(62y)
Loading…
↗
6
958951004000
Bolt, flange deep recess
Loading…
↗
7
62Y462410000
Belt
Loading…
↗
8
62Y115900000
Tensioner assembly
Loading…
↗
9
9050823M3600
Spring, Torsion
Loading…
↗
10
9024907M2900
Pin(62y)
Loading…
↗
11
958950802000
Bolt, flange deep recess
Loading…
↗
12
9010906M6400
Bolt(62y)
Loading…
↗
13
62Y115360000
Gear, drive
Loading…
↗
14
62Y115570000
Washer 1
Loading…
↗
15
9017035M3200
Nut
Loading…
↗
16
9028004M0600
Key, woodruff(6a1)
Loading…
↗
17
62Y133000000
Oil Pump assembly
Loading…
↗
18
9321033MH200
O-ring(62y)
Loading…
↗
19
9321012MG900
O-ring(62y)
Loading…
↗
20
932101451500
O-ring (11h)
Loading…
↗
21
970950604000
Bolt (682)
Loading…
↗
22
929900660000
Washer, plain (646)
Loading…
↗
