F9.9BMH (1988)
Oil Pump

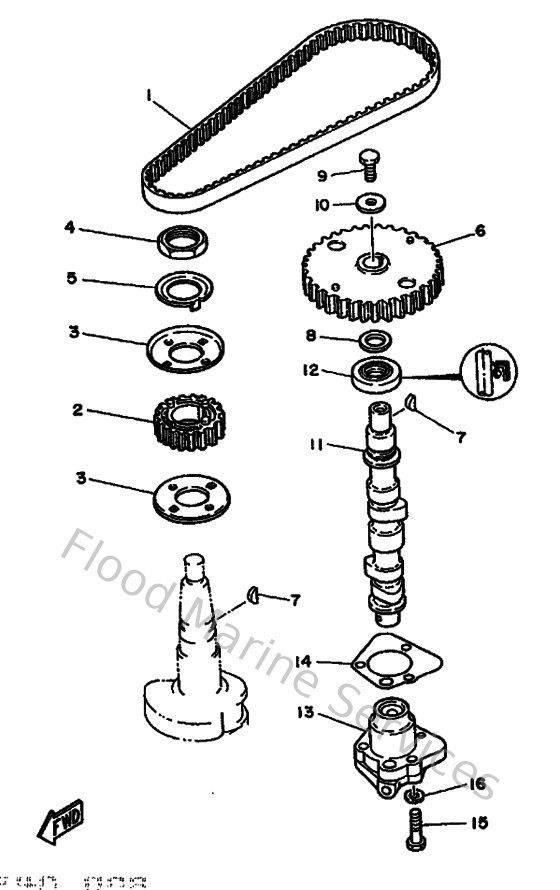

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
6G8462410000
Belt
Loading…
↗
2
6G8115360094
Gear Drive
Loading…
↗
3
6G8115570000
Washer 1
Loading…
↗
4
9017024M0900
Nut (6g8)
Loading…
↗
5
6G8115870100
Washer, lock
Loading…
↗
6
6G8115370094
Gear, Driven
Loading…
↗
7
9028003M0100
Key woodruff 146115450000
Loading…
↗
8
902011320100
Washer 6474283300
Loading…
↗
9
970950601600
Bolt, hexagon deep recess
Loading…
↗
10
9020106M9400
Washer (6g8)
Loading…
↗
11
6G8121710000
Shaft Cam
Loading…
↗
12
9310218M2100
Oil seal (6g8)
Loading…
↗
13
6G8133000100
Oil Pump Assembly
Loading…
↗
14
6G813329A000
Gasket,pump
Loading…
↗
15
973130602500
Bolt
Loading…
↗
16
929900660000
Washer, plain (646)
Loading…
↗
