Yamaha Outboard Parts - Oil Pump - FT25BE (2000) | Flood Marine

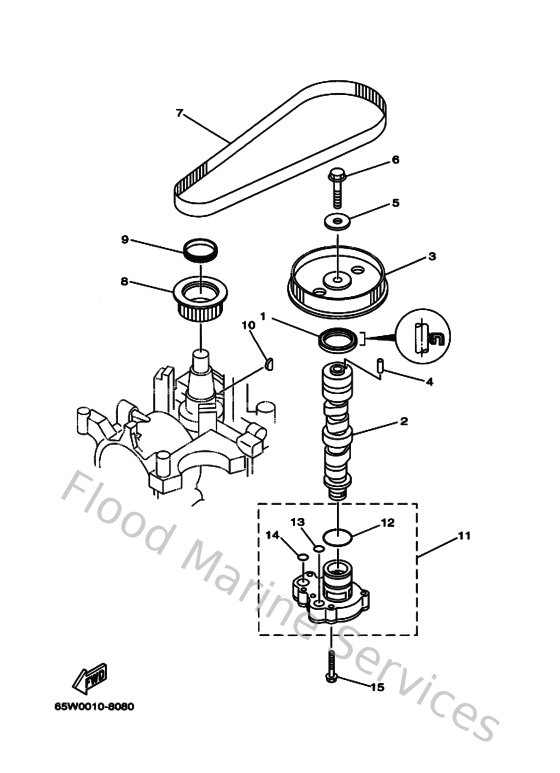

Diagram: Oil Pump

Diagram

Parts List

Reference
Description
Price


1
9310237M4000
Oil seal(62y)
Loading…

↗
2
65W121710000
Camshaft 1
Loading…

↗
3
65W115370100
Gear, driven
Loading…

↗
4
936051414300
Pin (2h7)
Loading…

↗
5
9020110M0600
Washer, plate(62y)
Loading…

↗
6
958951004000
Bolt, flange deep recess
Loading…

↗
7
65W462410000
Belt
Loading…

↗
8
65W115361000
Gear, drive
Loading…

↗
9
65W114760000
Spring
Loading…

↗
10
9028004M0600
Key, woodruff(6a1)
Loading…

↗
11
65W133000000
Oil pump assembly
Loading…

↗
12
9321033MH200
O-ring(62y)
Loading…

↗
13
9321012MG900
O-ring(62y)
Loading…

↗
14
932101451500
O-ring (11h)
Loading…

↗
15
975130653500
Bolt(3rv)
Loading…

↗
