FT9.9DMHSL (1999)
Oil Pump

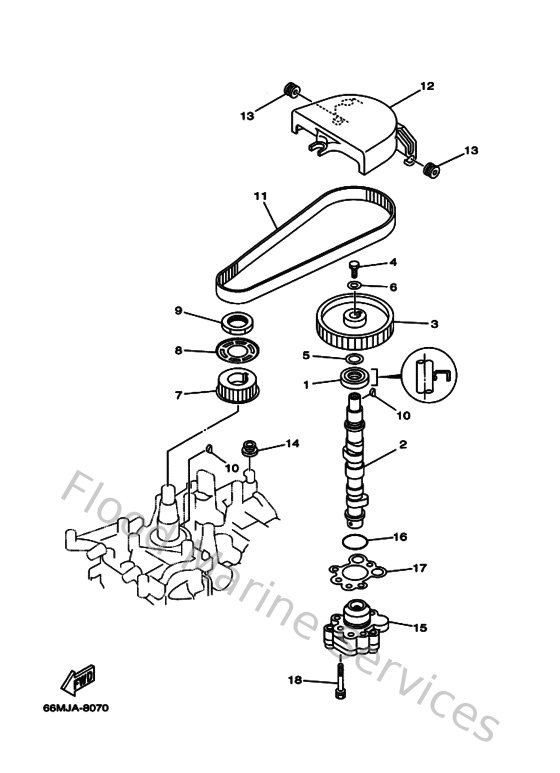

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
9310218M2100
Oil seal (6g8)
Loading…
↗
2
66M121710000
Camshaft 1
Loading…
↗
3
66M115370094
Gear, driven
Loading…
↗
4
970140601600
Bolt, hexagon deep recess
Loading…
↗
5
902011320100
Washer 6474283300
Loading…
↗
6
9020106M9400
Washer (6g8)
Loading…
↗
7
66M115360000
Gear, drive
Loading…
↗
8
66M115570000
Washer 1
Loading…
↗
9
9017028M3700
Nut
Loading…
↗
10
9028003M0100
Key woodruff 146115450000
Loading…
↗
11
66M462410000
Belt
Loading…
↗
12
66M462970000
Cover, dust
Loading…
↗
13
9048010M1600
Grommet(6j8)
Loading…
↗
14
904801207200
Grommet(53y)
Loading…
↗
15
66M133000000
Oil pump assembly
Loading…
↗
16
9321027ME300
O-ring
Loading…
↗
17
66M133290000
Gasket, Pump Cover
Loading…
↗
18
975950653500
Bolt(j52)
Loading…
↗
