L130BETOL (1996)
Oil Pump

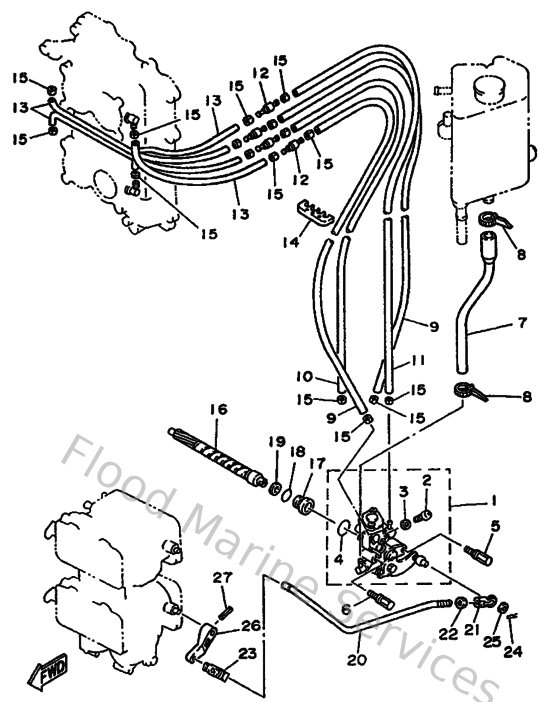

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
6N6132000000
Oil injection pump assembly
Loading…
↗
2
716244440000
Screw
Loading…
↗
3
1YU131870000
Gasket, breather bolt
Loading…
↗
7
6N7134160000
Pipe, oil 1
Loading…
↗
12
6R3131831000
Valve, check
Loading…
↗
16
6R3115370000
Gear, driven
Loading…
↗
17
6R3131170000
Collar, distance
Loading…
↗
20
6R3412410000
Rod, link
Loading…
↗
21
6H1412370000
Joint, link
Loading…
↗
23
6R5412370000
Joint, link
Loading…
↗
26
6E5142760100
Lever
Loading…
↗
