L200AETOL (1988)
Oil Pump

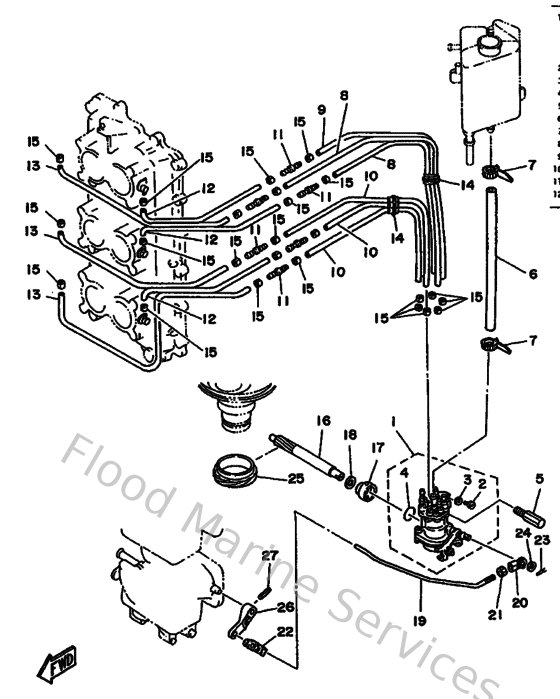

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
6G5132000100
Oil pump set
Loading…
↗
2
6E5134710100
Drain Screw
Loading…
↗
3
6E5134750000
Washer
Loading…
↗
6
6G5134160000
Pipe, oil 1
Loading…
↗
7
904651009800
Clamp
Loading…
↗
8
9044507M7300
Hose (l390)
Loading…
↗
9
9044507M8500
Hose (l390)
Loading…
↗
10
9044507M8300
Hose (l200)
Loading…
↗
11
6E5131320000
Joint
Loading…
↗
12
9044607M4800
Hose(62t)
Loading…
↗
13
9044507M9600
Hose(62t)
Loading…
↗
14
9046407M0500
Clamp (6g5)
Loading…
↗
15
9046807M0200
Clip (6e5)
Loading…
↗
17
6E5131170100
Collar, distance
Loading…
↗
18
9020108M9300
Washer, plate (6g5)
Loading…
↗
19
6E5412410000
Rod, Link
Loading…
↗
20
6H1412370000
Joint, link
Loading…
↗
21
953800560000
Nut, hexagon (663)
Loading…
↗
22
6E9412370000
Joint, link
Loading…
↗
23
9046805M0300
Clip(6j8)
Loading…
↗
24
902020508800
Washer, plate (666)
Loading…
↗
25
6E5115360000
Gear, Driven
Loading…
↗
26
6E5142760000
Lever
Loading…
↗
27
916903001600
Pin, spring
Loading…
↗
