L250AETO (2000)
Oil Pump

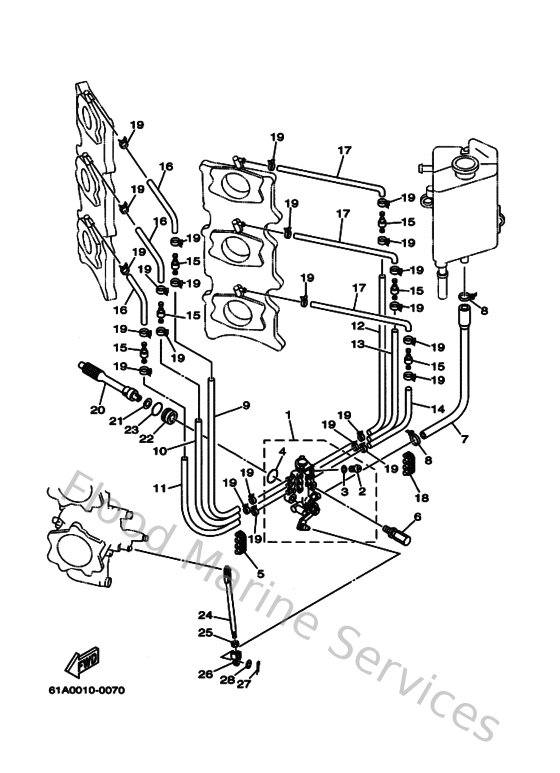

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
62J132000000
Oil Injection Pump Assembly
Loading…
↗
2
6R3134710000
Screw
Loading…
↗
3
1YU131870000
Gasket, breather bolt
Loading…
↗
4
9321019M8200
O-ring(6j8)
Loading…
↗
5
9046407M0500
Clamp (6g5)
Loading…
↗
6
9010906M4000
Bolt(6h0)
Loading…
↗
7
61A134160000
Pipe Oil 1
Loading…
↗
8
9046511M1000
Clamp
Loading…
↗
9
9044507M7700
Hose (l390)
Loading…
↗
10
9044507M9000
Hose (l390)
Loading…
↗
11
904450719600
Hose (l200)
Loading…
↗
13
9044507M7200
Hose (l390)
Loading…
↗
15
6R3131831000
Valve, check
Loading…
↗
16
9044507M8700
Hose(62t)
Loading…
↗
17
9044507M0700
Hose(62t)
Loading…
↗
19
9046807M0200
Clip (6e5)
Loading…
↗
20
61A115370000
Gear, driven
Loading…
↗
21
9020109M0100
Washer, plate(61b)
Loading…
↗
22
61A131170000
Collar, distance
Loading…
↗
23
9321018MA900
O-ring(61a)
Loading…
↗
24
61A412370000
Joint, link
Loading…
↗
25
953800560000
Nut, hexagon (663)
Loading…
↗
26
6H1412370000
Joint, link
Loading…
↗
27
914901201200
Pin, cotter (6g8)
Loading…
↗
28
902020508800
Washer, plate (666)
Loading…
↗
