P200ETOL (1995)
Oil Pump

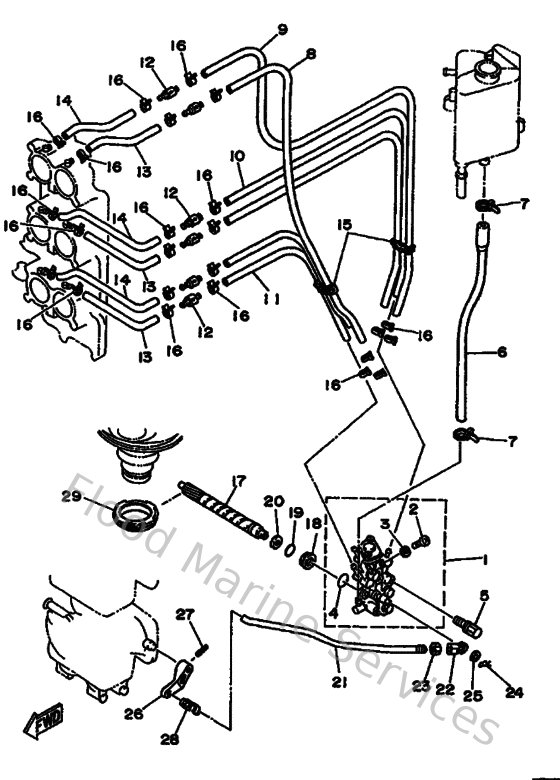

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
6R5132001000
Oil injection pump assembly
Loading…
↗
2
716244440000
Screw
Loading…
↗
3
1YU131870000
Gasket, breather bolt
Loading…
↗
4
9321019MA700
O-ring(6r0)
Loading…
↗
5
9010906M4000
Bolt(6h0)
Loading…
↗
6
6R3134160000
Pipe, oil 1
Loading…
↗
7
904651009800
Clamp
Loading…
↗
8
9044507M7700
Hose (l390)
Loading…
↗
9
9044507M8500
Hose (l390)
Loading…
↗
10
9044507M7200
Hose (l390)
Loading…
↗
11
9044507M0200
Hose (l200)
Loading…
↗
12
6R3131831000
Valve, check
Loading…
↗
13
9044507M8700
Hose(62t)
Loading…
↗
14
9044507M0700
Hose(62t)
Loading…
↗
15
9046407M0500
Clamp (6g5)
Loading…
↗
16
9046807M0200
Clip (6e5)
Loading…
↗
17
6R3115370000
Gear, driven
Loading…
↗
18
6R3131170000
Collar, distance
Loading…
↗
19
932101359500
93210-13m04
Loading…
↗
20
9020208M4400
Washer, plate(6r3)
Loading…
↗
21
6R5412410000
Rod, link
Loading…
↗
22
6H1412370000
Joint, link
Loading…
↗
24
902020508800
Washer, plate (666)
Loading…
↗
26
6E5142760100
Lever
Loading…
↗
27
916903001600
Pin, spring
Loading…
↗
28
6R5412370000
Joint, link
Loading…
↗
29
6R3115360000
Gear, drive
Loading…
↗
