XZZ150Q (2001)
Oil Pump

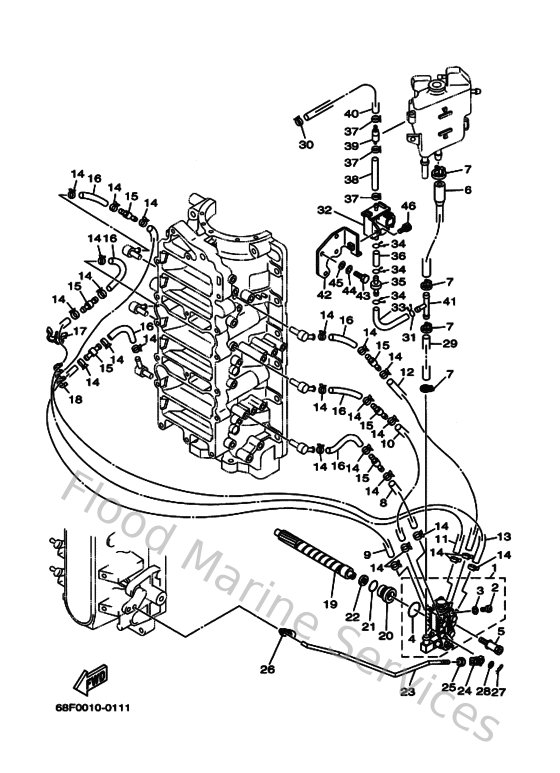

Diagram: Oil Pump
Parts List
Reference
Description
Price
1
68H132000000
Oil injection pump assembly
Loading…
↗
2
6R3134710000
Screw
Loading…
↗
3
6L2134750000
Gasket, breather bolt
Loading…
↗
4
9321019M8200
O-ring(6j8)
Loading…
↗
5
9010906M4000
Bolt(6h0)
Loading…
↗
6
6G5134160000
Pipe, oil 1
Loading…
↗
7
9046511M1000
Clamp
Loading…
↗
8
9044507M0000
Hose (l200)
Loading…
↗
9
9044507M9000
Hose (l390)
Loading…
↗
10
9044507MA500
Hose (l200)
Loading…
↗
11
9044507M1000
Hose (L770)
Loading…
↗
12
9044507MA400
Hose (l390)
Loading…
↗
13
904450700600
Hose (l770)
Loading…
↗
14
9046807M0200
Clip (6e5)
Loading…
↗
15
6R3131830000
Valve, check
Loading…
↗
16
9044507M0400
Hose(62t)
Loading…
↗
17
9046407M2000
Clamp(6h0)
Loading…
↗
18
9046407M0500
Clamp (6g5)
Loading…
↗
19
6R3115370000
Gear, driven
Loading…
↗
20
6R3131170000
Collar, distance
Loading…
↗
21
9321013M0400
93210-13m04
Loading…
↗
22
9020208M4400
Washer, plate(6r3)
Loading…
↗
23
67H412410000
Rod, link
Loading…
↗
24
6H1412370000
Joint, link
Loading…
↗
25
953800560000
Nut, hexagon (663)
Loading…
↗
26
6R5412370000
Joint, link
Loading…
↗
27
9046805M0300
Clip(6j8)
Loading…
↗
28
902020508800
Washer, plate (666)
Loading…
↗
29
9044512M1400
Hose (l50)
Loading…
↗
31
9046708M1800
Clip
Loading…
↗
32
68F131000000
Solenoid pump assembly
Loading…
↗
33
68F134180000
Hose 4
Loading…
↗
34
68F131840000
Spring, oil pipe
Loading…
↗
35
68F134400000
Filter assembly
Loading…
↗
36
68F1316F0000
Hose 1
Loading…
↗
37
68F131330000
Clip
Loading…
↗
38
68F1316G0000
Hose 2
Loading…
↗
39
68F1316A0000
Check Valve assembly
Loading…
↗
40
68F134160000
Hose 3
Loading…
↗
41
68F144850000
Pipe, joint
Loading…
↗
42
68F1319K0000
Plate
Loading…
↗
43
970950602000
Bolt(7u8)
Loading…
↗
44
929950610000
Washer(6a1)
Loading…
↗
45
929950660000
Washer, plain (646)
Loading…
↗
46
9011006M0600
Bolt, hexagon socket head
Loading…
↗
