40VMO (1996)
Oil Pump 1

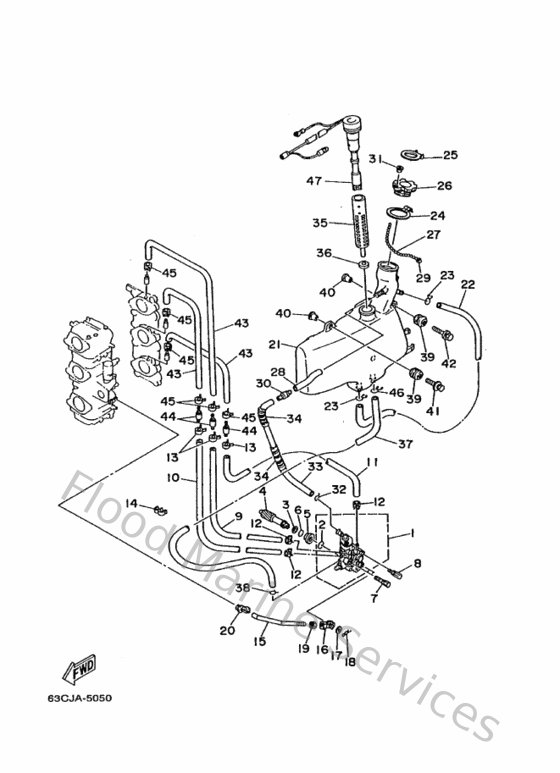

Diagram: Oil Pump 1
Parts List
Reference
Description
Price
1
63D132000000
Oil injection pump assembly
Loading…
↗
2
9321019MA700
O-ring(6r0)
Loading…
↗
3
9020108M9300
Washer, plate (6g5)
Loading…
↗
4
6H4115370100
Gear, driven
Loading…
↗
5
6H1131170100
Collar, distance
Loading…
↗
6
932101359500
93210-13m04
Loading…
↗
7
9010906M3900
Bolt(6h0)
Loading…
↗
8
9010906M4000
Bolt(6h0)
Loading…
↗
9
9044507M4400
Hose (l390)
Loading…
↗
10
9044507M2300
Hose (l570)
Loading…
↗
11
9044507MA600
Hose (l200)
Loading…
↗
12
9046807M0200
Clip (6e5)
Loading…
↗
14
9046407M2000
Clamp(6h0)
Loading…
↗
15
6H4412410100
Rod, link
Loading…
↗
16
6H1412370000
Joint, link
Loading…
↗
17
902020508800
Washer, plate (666)
Loading…
↗
18
9046805M0300
Clip(6j8)
Loading…
↗
19
953800560000
Nut, hexagon (663)
Loading…
↗
20
6R5412370000
Joint, link
Loading…
↗
21
63D217071000
Oil tank comp.
Loading…
↗
22
9044511M1500
Hose (l360)
Loading…
↗
23
9046711M0800
Clip(72x)
Loading…
↗
24
63D2175R0000
Hook, band
Loading…
↗
25
63D2176M0000
Hook
Loading…
↗
26
6H4217700000
Oil tank cap assembly
Loading…
↗
27
6H4246330000
Chain, ball
Loading…
↗
28
9044511M2300
Hose (l100)
Loading…
↗
29
6H4217570000
Washer, special 1
Loading…
↗
30
63D217440000
Breather
Loading…
↗
31
6H4246340000
Hook, chain ball
Loading…
↗
32
9046710M0400
Clip, pipe 1 (6e9)
Loading…
↗
34
9044610M0100
Tube (6e5)
Loading…
↗
35
6J8134110000
Strainer, oil
Loading…
↗
36
6J8134140000
Gasket, strainer cover
Loading…
↗
37
6L2134160000
Pipe, oil 1
Loading…
↗
38
904670800400
Clip, pipe 6162435600
Loading…
↗
39
6A0823170000
Damper, ignition coil
Loading…
↗
40
624425420000
Collar
Loading…
↗
41
9011906M6500
Bolt, with washer
Loading…
↗
42
9011906M6700
Bolt, with washer
Loading…
↗
43
9044607M4800
Hose(62t)
Loading…
↗
44
6E9131837000
Valve check
Loading…
↗
47
63D857201000
Oil level gauge assembly
Loading…
↗
