Yamaha Outboard Parts - Oil Tank - LZ150PETO (2000) | Flood Marine

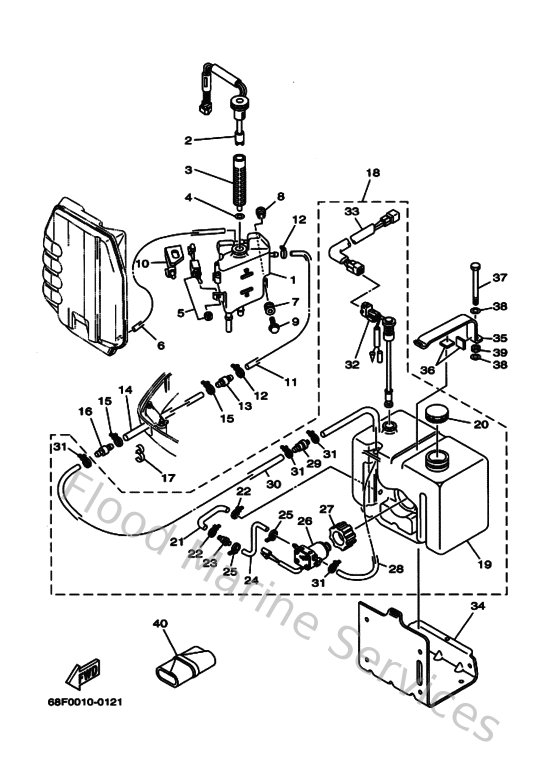

Diagram: Oil Tank

Diagram

Parts List

Reference
Description
Price


1
68F217500000
Oil tank assembly
Loading…

↗
2
67H857300000
Oil level gauge assembly
Loading…

↗
3
6E5134110000
Strainer, oil
Loading…

↗
4
6E5134140000
Gasket, strainer cover
Loading…

↗
5
6R38259E0000
Switch assembly
Loading…

↗
6
9044507M4300
Hose (l600)
Loading…

↗
7
6A0823170000
Damper, ignition coil
Loading…

↗
8
624425420000
Collar
Loading…

↗
9
9011906M6500
Bolt, with washer
Loading…

↗
10
9046512M9200
Clamp
Loading…

↗
11
6E5243230000
Pipe 12
Loading…

↗
12
904651009800
Clamp
Loading…

↗
13
6E5243790000
Pipe, joint 4
Loading…

↗
14
9044512M1300
Hose (L880)
Loading…

↗
15
9046511M1000
Clamp
Loading…

↗
17
9046413M3400
Clamp(6r3)
Loading…

↗
18
6E5217080800
Sub oil tank assembly
Loading…

↗
19
6E5217330200
Sub tank, oil (10.5l)
Loading…

↗
20
6E5217700300
Oil tank cap assembly
Loading…

↗
21
6E5243220000
Pipe 11
Loading…

↗
23
646242510200
Strainer 1
Loading…

↗
24
6E5243190100
Pipe, oil
Loading…

↗
26
6E5819000100
Oil feed pump assembly
Loading…

↗
27
6E5819220000
Grommet
Loading…

↗
28
6E5243210100
Pipe 10
Loading…

↗
30
9044511M8100
Hose (l3000)
Loading…

↗
32
6E5857200400
Oil level gauge assembly
Loading…

↗
33
6R3857213000
Wire, lead
Loading…

↗
34
6E5217340133
Holder, oil sub tank
Loading…

↗
35
6E5217980133
Bracket, damper
Loading…

↗
36
6E5217460000
Damper
Loading…

↗
37
970800610000
Bolt, hexagon
Loading…

↗
38
929900660000
Washer, plain (646)
Loading…

↗
39
953800660000
Nut(661)
Loading…

↗
40
68F281000000
Tool kit
Loading…

↗
