Yamaha Outboard Parts - Optional Parts - F8AMH (1988) | Flood Marine

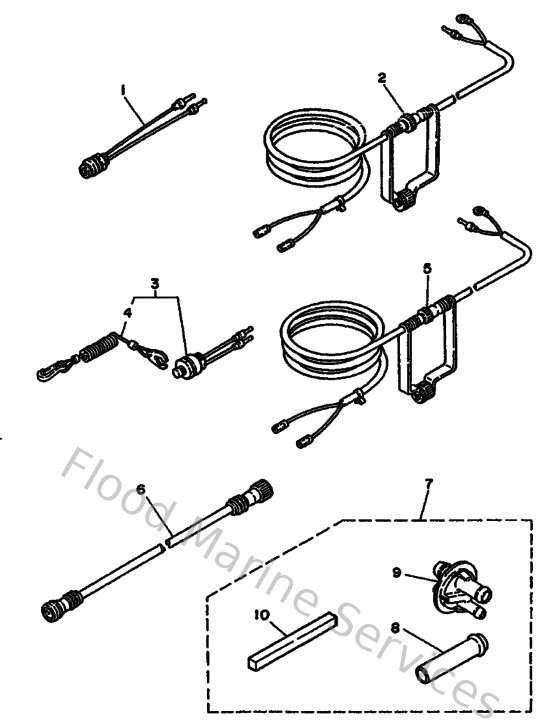

Diagram: Optional Parts

Diagram

Parts List

Reference
Description
Price


1
689825501100
Stop switch assembly
Loading…

↗
2
6A0825532000
Extention, wire lead
Loading…

↗
3
689825751200
Engine stop switch assembly
Loading…

↗
4
682825560000
Lanyard, stop switch
Loading…

↗
6
689825531000
Extension, wire lead
Loading…

↗
7
6G8W45370000
Well-Type Exhaust Kit
Loading…

↗
8
6G8146110000
Pipe, exhaust
Loading…

↗
9
6G8443911000
Nipple Hose
Loading…

↗
10
6G8453751000
Rubber Seal 2
Loading…

↗
