220AETL (1985)
Optional Parts 1

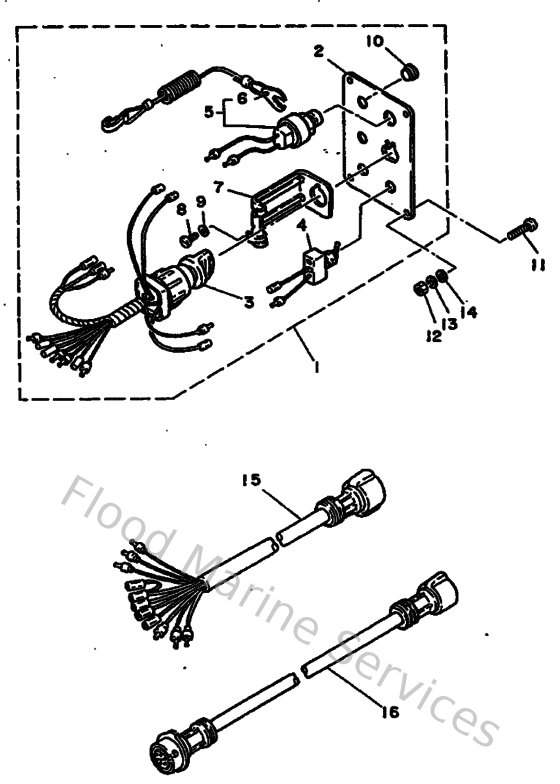

Diagram: Optional Parts 1
Parts List
Reference
Description
Price
1
688825701300
Panel switch assembly
Loading…
↗
2
688825711100
Switch panel
Loading…
↗
3
688825101100
Main switch assembly
Loading…
↗
4
6K1825740000
Switch, choke
Loading…
↗
6
682825560000
Lanyard, stop switch
Loading…
↗
7
663825810100
Stay, cord clamp
Loading…
↗
8
989030400800
Screw, bind (705)
Loading…
↗
9
929900410000
Ybs67-4 washer, spring
Loading…
↗
10
688825350000
Plug(2gu)
Loading…
↗
11
989030502500
Screw, bind
Loading…
↗
12
953030560000
Nut, hexagon (663)
Loading…
↗
13
929900510000
Ybs67-5 washer, spring
Loading…
↗
14
929030560000
Washer, plain (646)
Loading…
↗
15
6888258A2000
10p main harness mec 2m (6ft)
Loading…
↗
16
6888258A1000
10p main harness mec 2m (7ft)
Loading…
↗
