Yamaha Outboard Parts - Optional Parts 1 - 25NEMO (1989) | Flood Marine

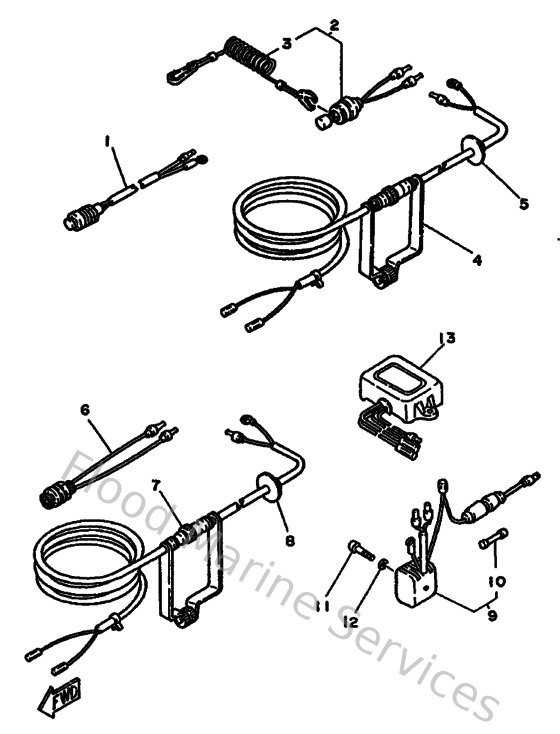

Diagram: Optional Parts 1

Diagram

Parts List

Reference

Description

Price

1

689825500100

Stop switch assembly

Loading…

2

689825751200

Engine stop switch assembly

Loading…

3

682825560000

Lanyard, stop switch

Loading…

4

689825532000

Extension, wire lead

Loading…

5

689427254000

Loading…

6

689825501100

Stop switch assembly

Loading…

9

6G1819706100

Rectifier assembly

Loading…

10

6G1821510000

Loading…

11

985030502500

Screw, panhead (a93)

Loading…

12

929900560000

Washer, plain (646)

Loading…

13

663819101000

Voltage Regulator assembly

Loading…
