25QEO (1991)
Optional Parts 1

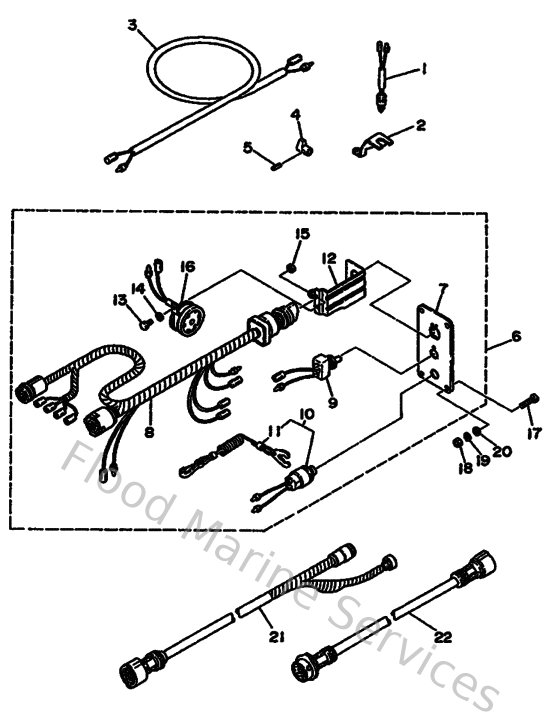

Diagram: Optional Parts 1
Parts List
Reference
Description
Price
1
6H3825400000
Neutral switch assembly
Loading…
↗
2
6H4825540000
Stay, Neutral Switch
Loading…
↗
3
6H4825530000
Extension, wire lead
Loading…
↗
4
6H4441730000
Lever Shift Control
Loading…
↗
5
916903002000
Pin, spring (6h4)
Loading…
↗
6
704825701200
Panel switch assembly
Loading…
↗
7
689825710200
Panel, Switch
Loading…
↗
8
704825100200
Main switch assembly
Loading…
↗
9
703825740000
Switch, choke
Loading…
↗
10
688825750200
Engine stop switch assembly
Loading…
↗
11
682825560000
Lanyard, stop switch
Loading…
↗
12
704825810000
Stay, Cord Clamp
Loading…
↗
13
973030501200
Bolt, hexagon
Loading…
↗
14
929900510000
Ybs67-5 washer, spring
Loading…
↗
15
953030570000
Nut (656)
Loading…
↗
16
688833831200
Buzzer
Loading…
↗
18
953800560000
Nut, hexagon (663)
Loading…
↗
21
6888258A5000
10p main harness mec 5m (16ft)
Loading…
↗
22
6888258A1000
10p main harness mec 2m (7ft)
Loading…
↗
