30AMH (1992)
Optional Parts 1

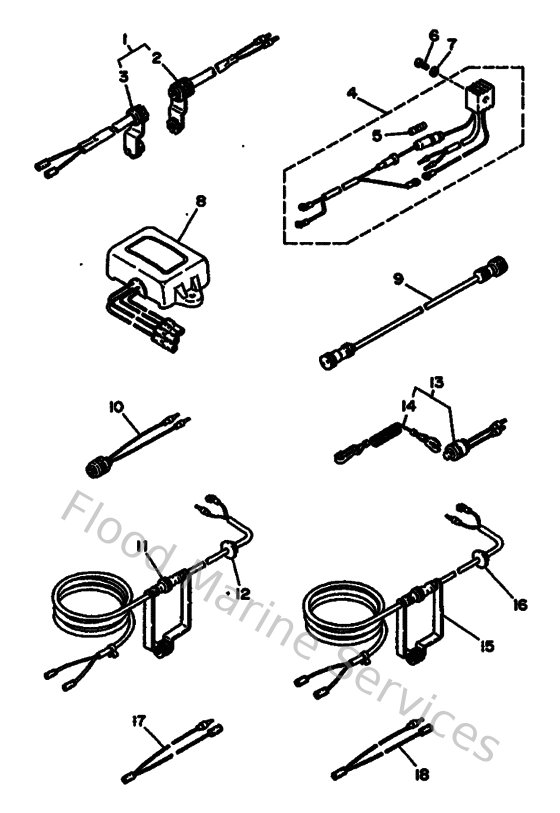

Diagram: Optional Parts 1
Parts List
Reference
Description
Price
1
682843800000
2p concent assembly
Loading…
↗
2
682843810000
2p concent 1
Loading…
↗
3
682843820000
2p concent 2
Loading…
↗
4
676819700000
Rectifier assembly
Loading…
↗
5
682821510100
Fuse
Loading…
↗
6
985030502500
Screw, panhead (a93)
Loading…
↗
7
929900560000
Washer, plain (646)
Loading…
↗
8
663819101000
Voltage Regulator assembly
Loading…
↗
9
689825531000
Extension, wire lead
Loading…
↗
10
689825501100
Stop switch assembly
Loading…
↗
11
689825532000
Extension, wire lead
Loading…
↗
12
689427254000
Grommet
Loading…
↗
13
689825751200
Engine stop switch assembly
Loading…
↗
14
682825560000
Lanyard, stop switch
Loading…
↗
