Yamaha Outboard Parts - Optional Parts 1 - 30DEO (1993) | Flood Marine

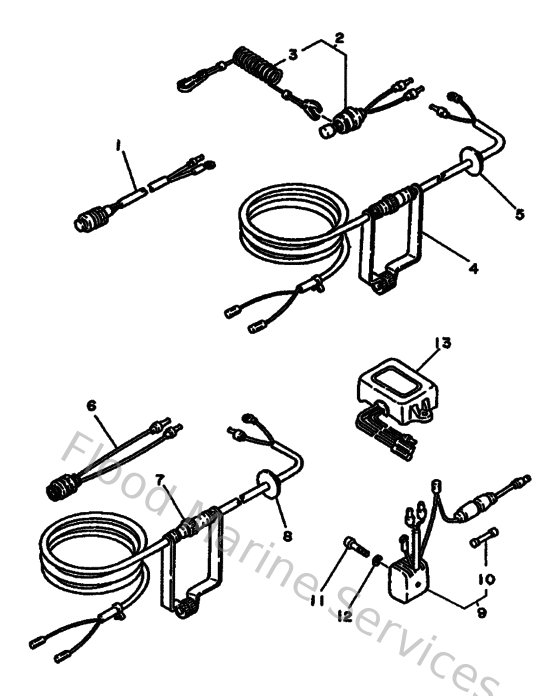

Diagram: Optional Parts 1

Diagram

Parts List

Reference

Description

Price

1

6A0825500100

Stop switch assy

Loading…

2

689825751300

Engine stop switch assy

Loading…

3

682825560000

Lanyard, stop switch

Loading…

4

6A0825532000

Extention, wire lead

Loading…

5

689427254000

Loading…

6

689825501100

Stop switch assy

Loading…

7

689825532000

Extension, wire lead

Loading…

9

6G1819706100

Loading…

10

6G1821510000

Loading…

11

985030502500

Screw, panhead (a93)

Loading…

12

929900560000

Washer, plain (646)

Loading…

13

663819101000

Voltage Regulator Assy

Loading…
