Yamaha Outboard Parts - Optional Parts 1 - L250AETO (1991) | Flood Marine

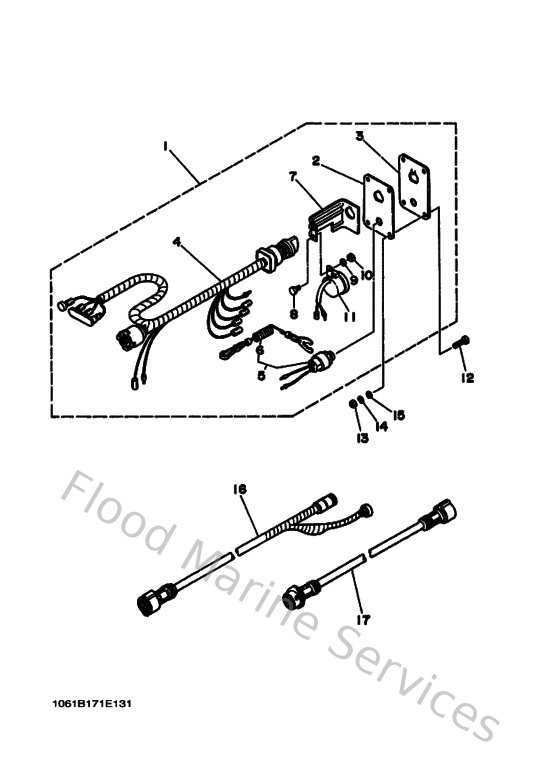

Diagram: Optional Parts 1

Diagram

Parts List

Reference
Description
Price


1
6R5825700000
Panel switch assembly
Loading…

↗
2
6R5825880000
Plate
Loading…

↗
3
6R5825710100
Panel, switch
Loading…

↗
4
6R5825100000
Main switch assembly
Loading…

↗
5
688825750100
Engine stop switch assembly
Loading…

↗
6
682825560000
Lanyard, stop switch
Loading…

↗
7
6R5825810000
Stay, Cord Clamp
Loading…

↗
8
970950501200
Bolt, hexagon
Loading…

↗
9
929900510000
Ybs67-5 washer, spring
Loading…

↗
10
953030570000
Nut (656)
Loading…

↗
11
6R5833830000
Buzzer
Loading…

↗
12
9014905M0500
Screw(6k0)
Loading…

↗
13
953800560000
Nut, hexagon (663)
Loading…

↗
15
929900560000
Washer, plain (646)
Loading…

↗
16
61A8258A0000
Extension, wire harness
Loading…

↗
17
6888258A1000
10p main harness mec 2m (7ft)
Loading…

↗
