115AETOL (1987)
Optional Parts 2

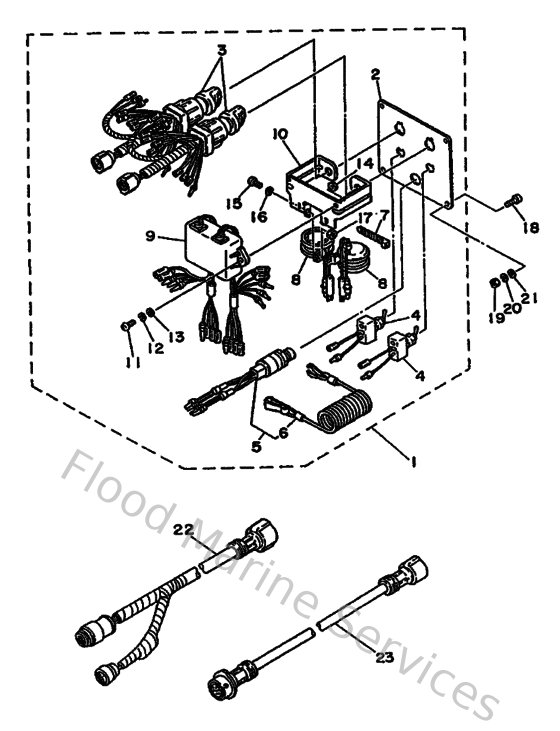

Diagram: Optional Parts 2
Parts List
Reference
Description
Price
1
6K1825700000
Panel switch assembly
Loading…
↗
2
6K1825710000
Plate, panel switch
Loading…
↗
3
61B825100200
Main switch assembly
Loading…
↗
4
688825740000
Switch, choke
Loading…
↗
5
6K1825750100
Engine stop switch assembly
Loading…
↗
6
682825560000
Lanyard, stop switch
Loading…
↗
7
704825810000
Stay, Cord Clamp
Loading…
↗
8
688833831100
Buzzer
Loading…
↗
11
978030601600
Screw, pan
Loading…
↗
12
929950610000
Washer(6a1)
Loading…
↗
13
929030660000
Washer, plain (646)
Loading…
↗
14
953030660000
Nut(661)
Loading…
↗
15
985800501000
Screw, pan head(62x)
Loading…
↗
16
929900510000
Ybs67-5 washer, spring
Loading…
↗
17
953800560000
Nut, hexagon (663)
Loading…
↗
18
9014905M0500
Screw(6k0)
Loading…
↗
21
929900560000
Washer, plain (646)
Loading…
↗
22
6K18258A4000
Extension, wire harness
Loading…
↗
23
6888258A1000
10p main harness mec 2m (7ft)
Loading…
↗
1
6Y5W00883000
Hour meter kit
Loading…
↗
2
6Y5835040000
Hour meter kit
Loading…
↗
5
6Y5835180000
Bulb (12v-1.7w) t6.5
Loading…
↗
6
6Y5835360000
Socket, meter
Loading…
↗
9
6Y5W00881000
Water Temp. Meter Kit
Loading…
↗
10
6Y5835900000
Water temperature assembly
Loading…
↗
13
688836640000
Damper
Loading…
↗
14
688836650000
Plate, fitting
Loading…
↗
15
688835910000
Thermo unit
Loading…
↗
16
904301411500
Gasket (663)
Loading…
↗
19
6Y5W00882000
Fuel meter kit
Loading…
↗
20
6Y5857500000
Fuel meter assembly
Loading…
↗
25
688857520100
Sender unit assembly, fuel meter
Loading…
↗
28
6Y5835030000
Voltmeter assembly
Loading…
↗
31
6Y5835530000
Wire, lead (l=2.5m)
Loading…
↗
