200AETOL (1987)
Optional Parts 2

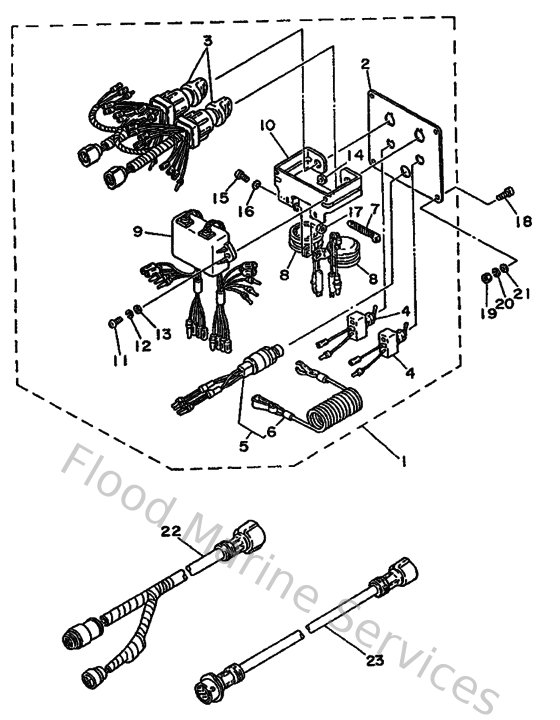

Diagram: Optional Parts 2
Parts List
Reference
Description
Price
1
6K1825700000
Panel switch assembly
Loading…
↗
2
6K1825710000
Plate, panel switch
Loading…
↗
3
61B825100200
Main switch assembly
Loading…
↗
4
688825740000
Switch, choke
Loading…
↗
5
6K1825750100
Engine stop switch assembly
Loading…
↗
6
682825560000
Lanyard, stop switch
Loading…
↗
7
704825810000
Stay, Cord Clamp
Loading…
↗
8
688833831100
Buzzer
Loading…
↗
9
6K1858300000
Control unit assembly
Loading…
↗
11
985070601400
Screw, pan
Loading…
↗
12
929030610000
Washer(6a1)
Loading…
↗
13
929030660000
Washer, plain (646)
Loading…
↗
14
953030660000
Nut(661)
Loading…
↗
15
985800501000
Screw, pan head(62x)
Loading…
↗
16
929900510000
Ybs67-5 washer, spring
Loading…
↗
17
953030560000
Nut, hexagon (663)
Loading…
↗
18
9014905M0500
Screw(6k0)
Loading…
↗
19
953800560000
Nut, hexagon (663)
Loading…
↗
21
929900560000
Washer, plain (646)
Loading…
↗
22
6K18258A4000
Extension, wire harness
Loading…
↗
23
6888258A1000
10p main harness mec 2m (7ft)
